Tektronix AVG1 () Main Features and Specifications

Product Specs

  • Status -

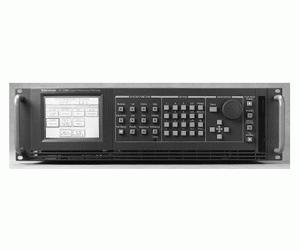

The AVG1 is a high-accuracy, multiformat analog test signal generator for the TG2000 video signal generator platform. The AVG1 supports NTSC, PAL, PAL-D, PAL-M, PAL-N, SECAM, RGB, YC, and Y, B-Y, R-Y. Signal generation architecture is 12 bit, 27 MHz component with digital modulation for composite signals. This ensures high-accuracy, distortion-free signals within a 6 MHz video bandwidth and signals suitable for many applications up to 8 MHz.

  • Standards Conformance:  EBU N10, ITU-R BT.624, SMPTE 170M
  • Frequency Response: Within 0.5% to 6 MHz. Typically within 5% to 8 MHz
  • Differential Gain Error: ≤0.1%
  • Differential Phase Error: ≤0.1°
  • S/N Ratio: ≥67 dB unweighted to 6 MHz, measured on a quiet line
  • SCH Phase Error: ≤2°
