Here you will find a large selection of new and used Rohde & Schwarz SMU200A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $12863 to $2800 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Rohde & Schwarz SMU200A (Vector Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 100 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Output Power Up to +19 dBm (PEP)
  • Modulation AM,Pulse,FSK,Vector,Wideband AM,ASK,MSK,PSK,QAM
  • Status -

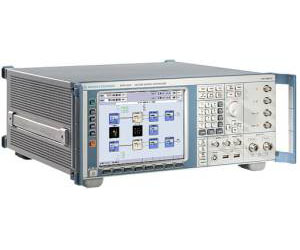

The Vector Signal Generator R&S SMU200A has been designed to meet all requirements encountered in research and development of modern communication systems as well as in their production. The R&S SMU200A not only combines up to two independent signal generators in one cabinet of only four height units, it also offers unrivalled RF and baseband characteristics.

  • Frequency options from 100 kHz to 2.2/3/4/6 GHz for the first RF path
  • Optional second RF path up to 2.2 GHz or 3 GHz
  • Up to two complete baseband paths
  • I/Q modulator with 200 MHz RF bandwidth
  • Very low SSB phase noise of typ. -135 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
  • Wideband noise of typ. -153 dBc (CW, f = 1 GHz, >5 MHz carrier offset, 1 Hz measurement bandwidth)
  • Excellent ACLR of typically +70 dB for 3GPP FDD
  • Very high level repeatability of 0.05 dB
  • Baseband generator with universal coder for realtime signal generation
  • Arbitrary waveform generator with up to 64 MSamples
  • Intuitive user interface with graphical display of signal flow (block diagram)
  • Context-sensitive help system
  • Very short frequency setting times (<3 ms); only 450 µs in List mode
  • Electronic attenuator up to 6 GHz over the full level range
  • Can be remote-controlled via GPIB and LAN
  • Digital Standard Eutra/LTE available
  • USB connectors for keyboard, mouse and memory stick
  • Many features for GPS option
  • Pulse Sequencer software generates complex pulses and bursts
