Here you will find a large selection of new and used Rohde & Schwarz SMJ100A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $31500 to $12420 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

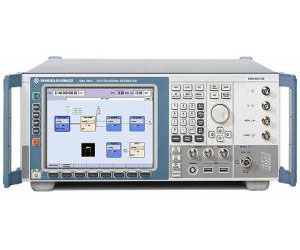

Rohde & Schwarz SMJ100A (Vector Signal Generators) Main Features and Specifications

Product Specs

  • Frequency Range Min. 100 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Modulation AM,FM,Pulse,Phase,FSK,Vector,Wideband AM,I/Q,ASK,PSK,QAM
  • Status -

The R&S SMJ100A meets all challenges that diverse applications place on modern vector signal generators. For example, it offers the signal quality and flexibility required in research and development - not to mention a convenient graphical user interface (GUI). And this is by no means all the R&S SMJ100A has to offer - a fact that becomes evident in production, where it excels with its flexible baseband and low setting times. The baseband meets all requirements, from providing realtime signals to replaying precalculated waveforms.

  • IQ modulator with 200 MHz RF bandwidth
  • Very low SSB phase noise of typ. - 133 dBc (f = 1 GHz, 20 kHz carrier offset, 1 Hz measurement bandwidth)
  • Wideband noise of typ. -153 dBc (CW, f = 1 GHz, >5 MHz carrier spacing, 1 Hz measurement bandwidth)
  • Digital Standard EUTRA/LTE available
  • Excellent ACLR performance of typ. +69 dB for 3GPP FDD (test model 1, 64 DPCHs)
  • High-stability reference oscillator as standard
  • High level repeatability
  • Very short frequency and level setting time (<5ms); only 450 μs in List mode
  • Electronic attenuator up to 6 GHz over the entire level range from -145 dBm to +13 dBm
  • Four code channels in realtime for 3GPP FDD
  • Different modulation in each slot for GSM/EDGE
  • Baseband generator with realtime signal generation
  • Arbitrary waveform generator with up to 64 Msamples
  • Signals up to 80 MHz bandwidth if the internal baseband generator is used
  • Color display with 800 x 600 pixels (SVGA format)
  • Intuitive user interface with graphical display of signal flow (block diagram)
  • Graphical display of baseband signal through built-in transients recorder
  • Context-sensitive Help system
  • Tooltips for all edit fields
  • Remote control via GPIB and LAN
  • Many features for GPS option
  • Pulse Sequencer software generates complex pulses and bursts
