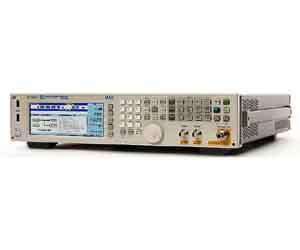

Showing Results for Keysight Technologies (Agilent HP) N5182B

Whether you are pushing for a linear RF chain or an optimized link budget, the MXG delivers what you need: phase noise, ACPR, channel coding, and more.
Take your devices and designs to the limit with the MXG.

• 9 kHz to 3 or 6 GHz
• +24 dBm specified power to 3 GHz with electronic attenuator
• -146 dBc phase noise at 1 GHz and 20 kHz offset
• ≤-73 dBc ACP W-CDMA 64 DPCH and <0.4% EVM 160 MHz 802.11ac
• AM, FM, ØM, and narrow pulse
• 10 MHz multifunction generator and LF out
• Digital step and list sweep modes
•  l/Q Modulation: ASK, FSK, MSK, PSK, QAM, custom I/Q
• Industry-leading ACPR and output power
• 160 MHz internal baseband generator (+/- 0.2 dB flatness): arbitrary waveform and real-time I/Q
• 1 Gsample playback memory and 30 GB internal or 8 GB external, removable memory
• Arbitrary and real-time signals: LTE, HSPA+, WLAN, GNSS, DVB, and more
• Multi-channel baseband generation with N5102A digital I/O, MIMO, and RF fading with PXB baseband generator and channel emulator
• 1000BaseT LAN, LXI, USB 2.0, and GPIB
• SCPI, IVI-COM, MATLAB drivers
• Backward compatible with ESG, MXG, PSG, 8648x, and more
• Agilent USB power sensor compatible with embedded display and SCPI control
• Generate the signals you need with outstanding hardware performance
  • Test radar receiver sensitivity, characterize ADC or mixer signal-to-noise ratio, or find receiver out-of-band rejection with unmatched phase noise and spurious performance
  • Drive power amplifiers and characterize nonlinear behavior with industry-leading ACPR and output power
  • Test wideband receivers and components, such as for 802.11ac WLAN, with the only one-box, factory-equalized 160 MHz RF bandwidth solution
• Maximize resources with low cost of ownership
  • Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record
  • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

N5182B MXG RF vector signal generator specifications:

• Frequency range: 9 kHz to 6 GHz
• Frequency switching (list mode): 800 µs
• Sweep mode: Step, list
• Output power (minimum): ‑144 dBm
• Output power (at 1 GHz): +27 dBm
• Harmonics (at 1 GHz): ‑35 dBc
• Non-harmonics (at 1 GHz): ‑96 dBc
• SSB phase noise (1 GHz, 20 kHz offset): ‑146 dBc/Hz
• AM rate: DC to 50 kHz
• FM deviation (maximum at 1 GHz): 4 MHz
• PM phase deviation (maximum at 1 GHz): 2 rads
• Narrow pulse width: 20 ns
• RF I/Q modulation bandwidth: Up to 300 MHz
• Baseband generator bandwidth: 160 MHz
• Baseband generator mode: Waveform playback and real-time
• Waveform playback memory: 1024 Msa
