Showing Results for Keysight Technologies (Agilent HP) N5181A-503

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N5181A-503 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $8868 to $5900 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

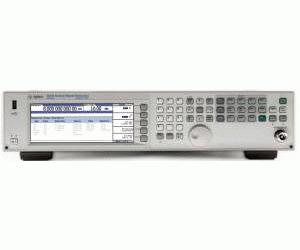

Keysight Technologies (Agilent HP) N5181A-503 (MXG Series) Main Features and Specifications

Product Specs

  • Frequency Range Min. 250 kHz
  • Frequency Range Max. 3 GHz
  • Freq. Resolution 10 mHz
  • Output Power to +14 dBm
  • Modulation AM,FM,Pulse,Phase,Analog
  • Status -
  • Launch Date Sep-2006

See also

Agilent MXG analog has three frequency range options to choose from to meet your specific RF test and budget requirements.

Selecting Option 503 equips the Agilent MXG analog to generate signals in a 250 kHz to 3 GHz frequency range.

Option 503 is recommended for test cases that require CW and analog modulated RF test signals at or below 3 GHz carrier frequencies. Common signal generation uses include LO and clock substitution, interference generation, and reference signal generation for analog components and receivers.

  • Covers the cellular and lower ISM frequency bands
  • Frequency resolution: 0.01 Hz
  • Phase noise performance: -116 dBc/Hz at 1 GHz carrier, 20 kHz offset
  • Output power: +14 dBm (measured) at 3 GHz with electronic attenuator
  • Frequency switching speed: 5 ms standard (SCPI mode & list mode) or 1.05 ms (SCPI) and 800 us (list) with Option UNZ
  • TCXO time base reference provides excellent frequency accuracy and drift characteristics
