Showing Results for Keysight Technologies (Agilent HP) N5172B

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N5172B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $35000 to $7370 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

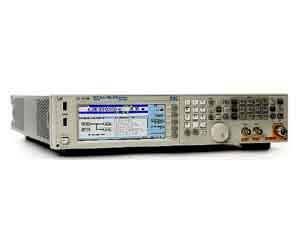

Keysight Technologies (Agilent HP) N5172B (EXG X-Series RF Vector Signal Generator) Main Features and Specifications

Product Specs

  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Output Power Output power (minimum): -144 dBm, Output power (at 1 GHz): +27 dBm
  • Modulation AM,FM,Pulse,Phase,FSK,I/Q,ASK,MSK,PSK,QAM
  • Status -
  • Launch Date May-2012

See also

To help you achieve faster throughput and greater uptime, the EXG is optimized for manufacturing test with the signals you will need for basic parametric testing of components and functional verification of receivers. Get “just enough” test at the right price with the EXG.

  • 9 kHz to 3 or 6 GHz
  • <900-µs simultaneous switching of frequency, power, and waveform type
  • ≤ -73 dBc ACP W-CDMA 64 DPCH and <0.4% EVM 80 MHz 802.11ac
  • AM, FM, ØM, and narrow pulse
  • 10 MHz multifunction generator and LF out
  • Digital step and list sweep modes
  • l/Q modulation: ASK, FSK, MSK, PSK, QAM, custom I/Q
  • 120 MHz internal baseband generator (±0.2 dB flatness): arbitrary waveform and real-time I/Q
  • 512 Msample playback memory and 30 GB internal or 8 GB external, removable memory
  • Arbitrary and real-time signals: LTE, HSPA+, WLAN, GNSS, DVB, and more
  • Multi-channel baseband generation with N5102A digital I/O, MIMO, and RF fading with PXB baseband generator and channel emulator
  • 1000BaseT LAN, LXI, USB 2.0, and GPIB
  • SCPI, IVI-COM, MATLAB drivers
  • Backward compatible with all ESG, MXG, PSG, and 8648x signal generators
  • Agilent USB power sensor compatible with embedded display and SCPI control
  • Maximize yield with outstanding hardware performance
    • Confidently test components with industry-leading ACPR, EVM, and output power
    • Maximize throughput with fast switching speed
    • Shrink your test stand with two rack-unit height
    • Get the performance and capabilities you need today and easily upgrade later
  • Maximize resources with low cost of ownership
    • Increase uptime with high mean time between failures (MTBF)
    • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

N5172B EXG RF vector signal generator specifications:

  • Frequency range: 9 kHz to 6 GHz
  • Frequency switching (list mode): 800 µs
  • Sweep mode: Step, list
  • Output power (minimum): ‑144 dBm
  • Output power (at 1 GHz): +27 dBm
  • Harmonics (at 1 GHz): ‑35 dBc
  • Non-harmonics (at 1 GHz): ‑72 dBc
  • SSB phase noise (1 GHz, 20 kHz offset): ‑122 dBc/Hz
  • AM rate: DC to 50 kHz
  • FM deviation (maximum at 1 GHz): 10 MHz
  • PM phase deviation (maximum at 1 GHz): 5 rads
  • Narrow pulse width: 20 ns
  • RF I/Q modulation bandwidth: Up to 300 MHz
  • Baseband generator bandwidth: 120 MHz
  • Baseband generator mode: Waveform playback and real-time
  • Waveform playback memory: 512 Msa
