Anritsu MS2724B (Spectrum Master) Main Features and Specifications

Product Specs

  • Low end frequency limit 9 kHz
  • High End Frequency Limit 20 GHz
  • Resolution Bandwidth Min. 1Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range DANL to +30 dBm
  • Status Discontinued
  • Launch Date Dec-2006
  • Alternative MS2724C

See also

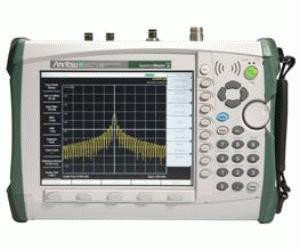

The MS2724B handheld spectrum analyzer is designed to conduct highly accurate analysis on the new wave of wireless LAN and cellular signals, including 802.11a, 3G, ultra-wideband, and wireless medical patient monitoring systems. The next generation of the Anritsu best selling Spectrum Master, the MS2724B is a small and easy to use portable spectrum analyzer with unprecedented measurement capability for applications up to 20 GHz. Weighing in at less than 8 pounds, it is equally at home on the engineering bench and in the field. It is ideally suited for measuring up to the fifth harmonic of 3G cellular phone base stations.

The B series family includes the MS2721B with performance from 9 kHz to 7.1 GHz and the MS2723B with performance from 9 kHz to 13 GHz.

An option adds spectrogram, signal strength and RSSI.  There is an option to add a user definable channel scanner option that is excellent for interference mitigation work in complicated RF environments.  Options to measure WCDMA signals are available.

Quasi-peak detection is included along with CISPR resolution bandwidths.

  • Handheld, battery-operated design
  • Large daylight viewable transflective color display
  • Built in pre-amplifier (standard) up to 4 GHz
  • Lightweight at only 7.5 pounds (typical)
  • Best in class Displayed Average Noise Level < -159 dBm typical in a 1 Hz resolution bandwidth at 1 GHz
  • Quick Zoom-in, Zoom-out display in 1-2-5 sequence
  • RBWs: 1 Hz to 3 MHz in 1-3 sequence
  • VBWs: 1 Hz to 3 MHz in 1-3 sequence
  • Automatic or manual input attenuator control
  • Dedicated smart measurements
  • Trace Averaging
  • Normal, Max hold, Min hold, user settable averaging (more than 65,000 traces can be averaged!)
  • Reference Level Offset
  • Three traces
  • Multilingual User Interface (English, Chinese, French, German, Japanese, Spanish, Korean, Italian)
  • Capability to create two custom languages using Master Software Tools and download the languages into the MS2724B
  • Store over 1000 test set-ups internally
  • Save over 1000 measurement traces internally
  • Save directly to compact flash memory
  • Alphanumeric labeling of saved measurements
  • Automatic time and date stamp of saved data
  • Rechargeable/field-replaceable Li-Ion battery
  • 6 Markers plus 6 delta markers or choose one marker with 6 delta markers
  • Multi-segmented upper and lower limit lines
  • 50-ohm Interface standard (75-ohm interface capability - instrument internally corrects for adapter loss)
  • RJ45 Ethernet 10/100 Base T and USB 2.0 Interfaces
  • AM, FM and SSB demodulation with built-in speaker and headset jack
