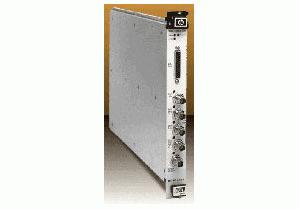

The Agilent E1445A Arbitrary Function Generator is a C-size, 1-slot, message-based VXI module. It provides the flexibility to produce virtually any waveform needed. The deep memory allows downloading a large number of waveforms at once, and can store up to 128 waveforms using SCPI programming. The memory sequencer lets you link waveform segments together in any order. These sequences can be repeated 1 to 64 k times or continuously. Within a sequence, the segments can be repeated up to 4,096 times using only one sequence memory entry. This memory structure lets you build large, complex waveforms out of small segments.

• 1-Slot, C-size, message based l 13-bit resolution,
•  40 MSa/s
•  256 kSa waveform segment memory
•  Waveform and frequency hopping with sweep function
•  Direct access to high-speed registers
•  Built-in self-test Form Factor Module (VXI)
• Waveforms (Sine, Square, etc.) Ramp,Sine,Square,Triangle
• Minimum Frequency 0.1 kHz
• Maximum Frequency, Sine wave 10.7 MHz
• Maximum Frequency, Square Wave 5 MHz
• Maximum Frequency, Triangle Wave 100 kHz
• Maximum Frequency, Ramp 100 kHz
• Simultaneous Maximum Sampling Rate/ch 40 MSa/s
• Frequency Accuracy 0.3 %
• Minimum Output Voltage 118.709370549769 mV
• Maximum Output Voltage 5.5 V
• Output Accuracy 4.2084E-02 %
• Output Impedance 75 Ohm
• Flatness 0.2 dB
• Modulation Pulse
• Sweep Modes Linear,Log
