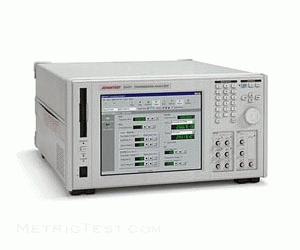

The Advantest D3371 Transmission Analyzer has a variable data rate capability from 10 MHz to 3.6 GHz which encompasses all data rates necessary for SONET/SDH, Fiber Channel, and Gigabit Ethernet devices required for the IP network markets. It can also generate various types of PRBS and user programmable test patterns for simulating actual line traffic, enabling flexible accommodation of a wide range of needs from development to production and ongoing maintenance

• Excellent output waveform quality
• 3 Vp-p maximum, wide range of output amplitudes from low-amplitude devices to direct Laser Diode modulation and Electro Absorption modulators
• Capability to generate diverse test patterns for Gigabit Ethernet and SONET/SDH
  •  Pseudo random (PRBS) pattern
  •  Programmable pattern
  •  Zero substitution pattern
  •  STM (SONET/SDH) frame pattern
  •  Flexible pattern
• Significantly enhanced bit error measurement functions
  •  Error rate measurement
  •  Error count measurement
  •  Error interval measurement
  •  Error-free interval measurement
  •  Frequency measurement
  •  Error performance measurement
• Burst pattern signal generation capability
• High-precision 10 MHz to 3.6 GHz internal synthesized clock generator
• Auto search function
• GPIB Remote control function
• 10Base-T Ethernet interface
• Interactive GUI with large color LCD, touch panel
