Showing Results for Keysight Technologies (Agilent HP) N6030A

Here you will find a large selection of new and used Keysight Technologies (Agilent HP) N6030A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $31320 to $3995 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) N6030A (Arbitrary Waveform Generators) Main Features and Specifications

Product Specs

  • Sampling Rate 1.2 GSa/sec
  • Record Length 16 MS per channel
  • Vertical Resolution [Bit] 15
  • Output Voltage Range <-65 dBc (dynamic range)
  • Channels 2
  • Status Discontinued
  • Launch Date Mar-2005
  • Alternative M9330A

See also

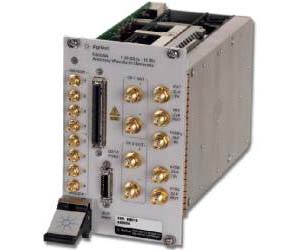

The Agilent N6030A arbitrary waveform generator delivers unprecedented performance for creation of complex wideband waveforms. High sampling rate and high bit resolution provided in a single instrument enable designers to create ideal waveforms for accurate test of radar, satellite, and frequency agile systems. Each channel of the N6030A provides 500 MHz of modulation bandwidths and over 65 dBc of spurious free dynamic range. When the N6030A is combined with a wideband I/Q upconverter, modulation bandwidth of 1 GHz can be realized at microwave frequencies for authentic signal simulations for IF and RF subsystem test.

  • Dual channel operation
  • Ease of use
  • Scalable
  • Differential and single-ended outputs
  • Up to 16 MS waveform memory (optional)
  • Multiple module synchronization
  • Up to 125k definable waveform segments
  • Up to 16k unique definable sequences
  • Complete instrument control from MATLAB®
  • Compatible with CompactPCI and PXI mainframes
