Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 11636B listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $2450 to $500 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 11636B () Main Features and Specifications

Product Specs

  • Status -

See also

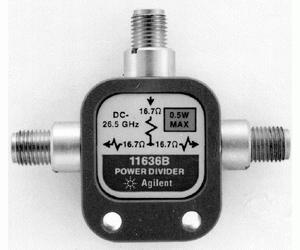

The Agilent 11636B is a dc to 26.5 GHz power divider for direct power dividing applications. The excellent impedance match of all three ports improves fault location measurements by reducing re-reflections. The Agilent 11636B power divider/combiner is recommended when making wideband comparison measurements with the Agilent 8757 scalar vector network analyzer.

  • Frequency range: dc to 26.5 GHz
  • Maximum SWR: 1.29
  • Insertion loss: 7.5 dB
  • Maximum amplitude tracking: 0.25 dB at 18 GHz
  • Maximum phase tracking: 2 deg typical
