Showing Results for Keysight Technologies (Agilent HP) 5340A

11 results found for Agilent hp 5340a
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 5340A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $1360 to $549 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 5340A () Main Features and Specifications

Product Specs

  • Min. Freq. 10Hz
  • Max. Freq. 18 GHz
  • Status Discontinued
  • Supported until May-2001

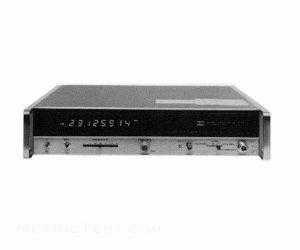

The Agilent 5340A Frequency Counter is an easily used, versatile instrument for direct measurement of frequencies from 10 Hz to 18 GHz via a single input connector. The exceptional sensitivity of this instrument enhances measurement in the microwave field, where signals are commonly low-level and connected via directional coupler or lossy devices

  • Single input 10 Hz to 18 GHz
  • Automatic amplitude discrimination
  • High sensitivity -35 dBm
  • Optional extension to 23 GHz
  • High AM and FM tolerance
  • Exceptional reliability
  • Number of Channels 2 ch
  • Minimum Frequency, Ch. 1 10 Hz
  • Maximum Frequency, Ch. 1 18 GHz
  • Input Impedance, Ch.1 50 Ohm
  • Input Coupling, Ch 1 AC,DC
  • Minimum Frequency, Ch. 2 10 Hz
  • Maximum Frequency, Ch. 2 250 MHz
  • Input Impedance, Ch. 2 1 MOhm
  • Input Coupling, Ch 2 AC
  • Time base stability .0000003 /mo
  • Measurement Throughput 0.05 s
  • External Time base reference 10 MHz
  • Sensitivity:  -30 dBm from 10 Hz to 500 MHz; -35 dBm from 500 MHz to 16 GHz; -25dBm from 10 to 18 GHz
