Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 83493A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $3138 to $997 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

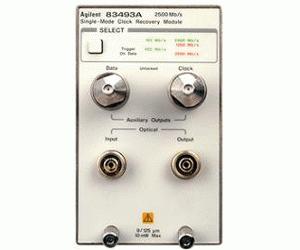

Keysight Technologies (Agilent HP) 83493A () Main Features and Specifications

Product Specs

  • Status Discontinued
  • Alternative 83496B, 83496B-100, 86105B-111, 86105B-112, 86105B-113

See also

The 86100 family of wide-bandwidth oscilloscopes offers single connection measurements - no external trigger is required. With the addition of the Agilent 83491/92/93/94A series of clock recovery receiver modules, reliable parametric testing becomes easy even when you do not have access to a clock signal.

The Agilent 8349X series of plug-in receiver modules cover the three most popular transmission media in use today - electrical lines, multimode fiber and single-mode fiber. A built-in coupler/splitter reduces external hardware required for triggering. No more need for awkward cables just to get a trigger - simply plug in your test signal, select your data rate, and make your measurements.

  • Optical clock recovery for 9/125 fibers
  • Wavelength range: 1200-1600 nm
  • Data rates: 0.155/0.622/1.250/2.488/2.500 Gb/s
  • PLL bandwidth: 50 to 70 kHz (internal triggering), 4 to 5 MHz (external output)
  • Input power: -20 to +3 dBm
  • Optical insertion loss (through path): ≤ 1.5 dB
  • Optical return loss: ≥ 28 dB
  • Clock Recovery Phase Locked Loop Bandwidth
    • Internal Path Triggering: 50 to 70 kHz
    • External Output: 4 to 5 MHz
  • Output jitter, all rates: 0.0125 UIrms
  • Maximum continuous optical power before damage: 10 mW peak
  • DATA and CLOCK output amplitude, all rates: 0.5Vp-p
  • DATA and CLOCK output electrical return loss
    • 50 MHz through 2500 MHz: ≥10 dB
    • 2.5 GHz through 10 GHz: ≥8 dB
  • Compatibility: 86100A/B/C Infiniium DCA/DCA-J Mainframes
