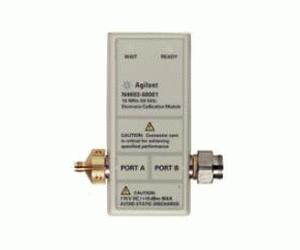

The Agilent N4691B MW electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Agilent PNA and ENA series of network analyzers controls the module directly via the USB interface. The modules can also be controlled via an 85097B interface kit when used with an Agilent 8753E/ES/ET or 8720D/ES/ET. (This requires a special parallel cable and firmware Revision 7.74).

ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction, which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.

• 300 kHz to 26.5 GHz frequency range
• USB interface for direct control with PNA and ENA series of network analyzers
• Alternative 85097B interface when used with other analyzers
• Fast calibration
• Full two-port calibration with a single connection
• Reduced connector wear
• NIST traceable accurate calibrations
• Reliable solid-state switching
• Electrical characteristic corrected performance, with frequency ranges as follows: 300 kHz to 2 MHz, 2 to 10 MHz, 10 to 500 MHz, 500 MHz to 2 GHz, 2 to 10 GHz, 10 to 20 GHz, 20 to 26.5 GHz
  • Directivity in dB: 31, 41, 46, 56, 54, 48, 44
  • Source match in dB: 29, 36, 41, 47, 45, 44, 40
  • Reflection tracking (±dB): 0.11, 0.06, 0.05, 0.02, 0.03, 0.04, 0.05
  • Transmission tracking (±dB): 0.14, 0.11, 0.07, 0.05, 0.07, 0.1, 0.12
  • Load match in dB: 26, 31, 37, 45, 49, 45, 40
