Keysight Technologies (Agilent HP) 85036B (75 Ohm Type-N Calibration Kits) Main Features and Specifications

Product Specs

  • Status -

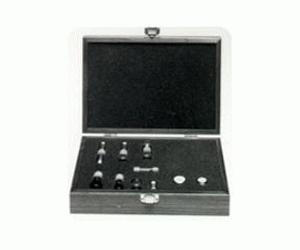

The Agilent 85036B calibration kit contains precision 75 ohm type-N standards used to calibrate Agilent network analyzers for measurement of devices with 75 ohm type-N connectors. Standards include fixed terminations, open circuits, and short circuits in both sexes. Precision phase-matched adapters are included for accurate measurements of non-insertable devices. This kit is specified from dc to 3 GHz.

The broadband loads are instrument-grade, 75Ω terminations that have been optimized for performance up to 3 GHz. The rugged internal structure provides for highly repeatable connections. A distributed resistive element on sapphire provides excellent stability and return loss.

The opens and shorts are built from parts that are machined to the current state-of the-art precision machining. Both the opens and shorts are constructed so that the pin depth can be controlled very tightly, thereby minimizing phase errors. Some of the opens and shorts have offsets. The lengths of these offsets are designed so that the difference in phase of their reflection coefficients is approximately 180 degrees at all frequencies.

Like the other devices in the kit, the adapters are built to very tight tolerances to provide good broadband performance. The adapters utilize a dual-beaded connector structure to ensure stable, repeatable connections. The beads are designed to minimize return loss and are separated far enough so that interaction between the beads is minimized. The adapters are designed so that their nominal electrical lengths are the same, which allows them to be used in calibration procedures for non-insertable devices.

  • Pin depth
    • Fixed Load: 0 to -0.0020 inches, 0 to -0.0508 mm
    • Male Short: 0 to -0.0020 inches, 0 to -0.0508 mm
    • Female Short: 0 to -0.004 inches, 0 to -0.1016 mm
    • All Type-N Adapters: 0 to -0.0030 inches, 0 to -0.0762 mm
  • Loads
    • Return loss ≥ 46 dB (ρ ≤ 0.00501), DC to ≤2 GHz
    • Return loss ≥ 40 dB (ρ ≤ 0.01000), >2 to ≤3 GHz
