Here you will find a large selection of new and used Hioki 3193 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Hioki 3193 (Bench Type Power Analyzers) Main Features and Specifications

Product Specs

  • Input Channels Single-phase/two-wires to three-phase/four-wire
  • Instrument Type Benchtop
  • Interfaces RS-232,Screen,GPIB,Printer,Floppy
  • Operation Modes Power Analyzer, Meter, Waveform Monitor
  • Measurements Voltage, Current, Voltage/Current Peak, Effective/Reactive/Apparent Power, Power Factor, Phase, Frequency, Current/Power Integration, Load Rate, Efficiency, Torque, RPM, Motor Output, Harmonics, Flicker
  • Status -
  • Launch Date Jan-2002

See also

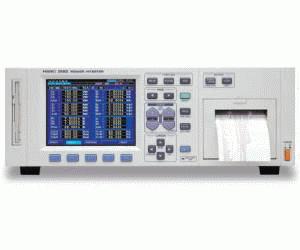

The 3193 is a wide spectrum power meter for comprehensive device assessment .

  • A multi-function power meter for use with single phase power lines to 3-phase, 4-wire circuits. Accommodating up to 6 units, the unit is not only capable of measuring up to 6 single phase systems, but can simultaneously measure the input and output of a 3-phase inverter and provide effective power measurements
  • Measures voltage, current, voltage/current peak, effective/reactive/apparent power, power factor, phase, frequency, current/power integration, load rate, efficiency, torque, RPM, motor output.
  • Supports harmonic analysis and flicker measurement
  • 6.4 inch TFT color LCD
  • RMS/MEAN rectification
  • FDD
  • Scaling
  • Averaging
  • A variety of clamp-on sensors available - for AC only, as well as for AC/DC. This is in addition to strain gauge-type sensors
