Hioki 3169-20/21 (Clamp On Power Hitester) Main Features and Specifications

Product Specs

  • Input Channels Single-phase 2-wires (4 circuits), Single-phase 3-wires (2 circuits), Three-phases 3-wires (2 or 1 circuit), and Three-phases 4-wires (1 circuit)
  • Instrument Type Handheld
  • Interfaces RS-232,Screen,Printer,Software,PC card
  • Operation Modes Power recorder, 3P3W2M, 3P4W4I, times series graph display, spreadsheet display, harmonic analysis, reports, screen print function
  • Measurements Voltage, Current, TRMS, Active/ reactive/ apparent power, Active/ reactive power integration, PF, Frequency, Harmonic waveform value
  • Status -

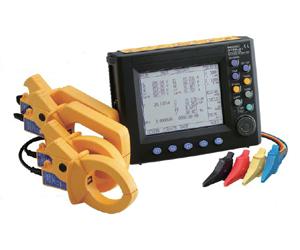

The 3169-20 and 3169-21 are clamp on HiTesters that allow measurement of single-phase to three-phase 4-wire circuits with a single unit. In addition to measuring standard parameters such as voltage, current, power, power factor, and integrated values, these clamp-on power meters can simultaneously perform demand measurements required for carrying out power management and energy-saving measures, as well as harmonic measurements. The two new power meters also feature PC card data storage, and come equipped with an RS-232C interface for PC communications. Further, with greater data processing speeds, it is possible to measure the power of just a few cycles, enabling more detailed and effective energy-saving measures for equipment. The 3169-20 and 3169-21 are ideal for users who want to achieve close control over energy-saving management activities and measures.

  • Demand value and harmonic waveform measuring that share the same voltage line 4-circuits simultaneously
  • A wide range of measurement functions
  • Data can be saved onto a PC card
  • High-speed and continuous processing to measure individual waveforms
  • High-speed D/A output for analog graph recording (Model 3169-21)
  • 0.5 A to 5000 A range
  • Compact and light weight
  • PC card data storage, plus internal hard drive
  • Power recording for individual waveforms
  • Simultaneous recording of demand values and harmonics
  • Power measurement support software
  • Multiple languages support
  • Detect incorrect connection using vector diagrams
  • Various functions: Error connect check, language selection, display hold, setting backup, power shut off management, key lock

3169-20 and 3169-21 specifications:

  • Measurement line & number of circuits: Single-phase 2-wires (4 circuits), Single-phase 3-wires (2 circuits), Three-phases 3-wires (2 or 1 circuit), and Three-phases 4-wires (1 circuit)
  • Measurement items: Voltage, Current, Active/ reactive/ apparent power, Active/ reactive power integration, Power factor, Frequency, Harmonic waveform value
  • Voltage ranges: 150.00 V to 600.00 V AC, 3 ranges
  • Current ranges: 500.00 mA to 5.0000 kA AC (depends on current sensors)
  • Power ranges: 750.00 W to 900.00 kW (depends on combination of voltage, current range, and measurement line)
  • Display refresh rate: 2 times /sec (except when using a PC card while accessing the internal memory, or when performing RS-232C communications)
  • Data save interval
    • Standard interval: 1 sec to 30 sec, 1 minute to 60 minutes, 13 selects
    • Fast interval: A single waveform, or 0.1, 0.2, or 0.5 sec (at instant value only)
