Tektronix 2753P (2750 Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 10 kHz
  • High End Frequency Limit 1.8 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 3 MHz
  • Status Discontinued

See also

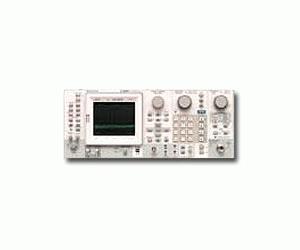

The Tektronix 2753P Programmable Spectrum Analyzer offers a broad selection of features and benefits to meet wide-ranging needs for laboratory-level frequency domain spectrum analysis.

The 2753P features the same functionality and high level of performance as the 2756P, but over a frequency range of 100 Hz to 1.8 GHz It is optimized for standalone or automated operation in baseband through UHF measurements, where the ability to identify and process weak signals is critical. The unit provides full IEEE-488 (GPIB) programmability.

  • Frequency range of the instrument is 100Hz to 1.8GHz
  • Continuous-Resolution Frequency Tuning Combines "Synthesized" Setability and Accuracy with Analog feel
  • Viewable dynamic range: 90 dB
  • Resolution bandwidth 10 Hz to 3 MHz
