Showing Results for Keysight Technologies (Agilent HP) 8719ET

8 results found for Agilent hp 8719et
Similar models:  Keysight Technologies (Agilent HP) 8720ET  Keysight Technologies (Agilent HP) 8722ET
Showing page 1 of about 1 pages total.
Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 8719ET listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings by price. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 8719ET (8720E Family) Main Features and Specifications

Product Specs

  • Instrument Type Vector
  • Low end frequency limit 50 MHz
  • High End Frequency Limit 13.5 GHz
  • Output Power Range 100 dB 9at 0.84 to 20 GHz)
  • Input Noise Level -120 dBm < 8GHz
  • Status Discontinued
  • Supported until May-2010
  • Alternative N5230A PNA-L Network Analyzer (Option 120/125)

See also

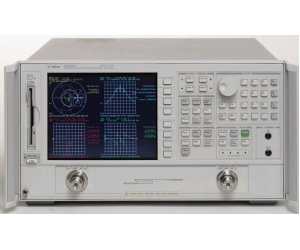

The Agilent 8719ET vector network analyzer allows characterization of RF and microwave components at an affordable price. The Agilent 8719ET includes an integrated synthesized source, test set and tuned receiver. The built-in transmission/reflection (T/R) test set provides a full range of magnitude and phase measurements in the forward direction. Built-in vector accuracy enhancement techniques include one-port, response, and enhanced response calibrations.

  • 50 MHz to 13.5 GHz Up to 104 dB of dynamic range
  • Two measurement channels
  • Four display channels Frequency and power sweeps
  • Fast sweep and data transfer speed
  • Pass/fail testing, powerful marker functions
  • Internal automation with test-sequencing Optional time-domain analysis
