Here you will find a large selection of new and used Keysight Technologies (Agilent HP) 4294A listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $24895 to $14750 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Keysight Technologies (Agilent HP) 4294A (Precision Impedance Analyzers) Main Features and Specifications

Product Specs

  • Test Freq. Range Low 40Hz
  • Test Freq. Range High 110 MHz
  • Resistance Range Low 3 mOhm
  • Resistance Range High 500 MOhm
  • Measurements Z,L,C,Q,D,Phase,R,X,G,B,Y
  • Status -

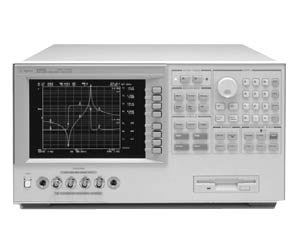

The Agilent 4294A precision impedance analyzer is an integrated solution for efficient impedance measurement and analysis of components and circuits. The Agilent 4294A covers a broader test-frequency range (40 Hz to 110 MHz) with Basic impedance accuracy:+/-0.08 %. Excellent High Q/Low D accuracy enables analysis of low-loss components. The wide signal-level ranges enable device evaluation under actual operating conditions. The test signal level range is 5m V to 1 Vrms or 200 uA to 20m Arms, and the DC bias range is 0 V to +/-40 V or 0m A to +/-100m A. Advanced calibration and error compensation functions eliminate measurement error factors when performing measurements on in-fixture devices. The Agilent 4294A is a powerful tool for design, qualification and quality control, and production testing of electronic components. Circuit designers and developers can also benefit from the performance/functionality offered.

  • Accurate measurement over wide impedance range and wide frequency range
  • Basic impedance accuracy: +/- 0.08 % 40 Hz to 110 MHz, 3 m ohm 500M ohm
  • Powerful impedance analysis function
  • Ease of use and versatile PC connectivity
