Ophir RF 5172 (Linear Power RF Amplifiers) Main Features and Specifications

Product Specs

  • Rated Power Output 30W
  • Frequency Range - Low 1 GHz
  • Frequency Range - High 3 GHz
  • Output&nbsp;P1dB<br>Compression 24 watts
  • Gain 46dB
  • Status -

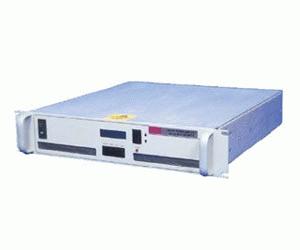

The Ophir RF 5172 is a 30 Watt solid state broadband high power RF amplifier that covers the 1.0 – 3.0 GHz frequency range. This small and lightweight amplifier utilizes Class A/AB linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range.

  • Frequency Range 1.0 – 3.0 GHz
  • Saturated Output Power 30 Watts typical
  • Power Output @ 1dB Comp. 24 Watts min
  • Small Signal Gain +46 dB min
  • Small Signal Gain Flatness + 1.5 dB max
  • IP3 +54 dBm typical
  • Input VSWR 2:1 max
  • Harmonics -20 dBc typical @ 24 Watts
  • Spurious Signals > -60 dBc typical @ 24 Watts
  • Input/Output Impedance 50 Ohms nominal
  • AC Input Power 350 Watts max
  • AC Input 100 – 240 VAC, single phase
  • RF Input +10 dBm max
  • RF Input Signal Format CW/AM/FM/PM/Pulse
  • Class of Operation A/AB
