Description of Rohde & Schwarz R&S®SMA100B

Categories: Generators, Signal Generators

Manufacturer: Rohde & Schwarz

Model: SMA100B

Condition: Used

Seller: Shenzhen Mega Technologies Co.,ltd

R&S®SMA100B RF and Microwave Signal Generator

The R&S®SMA100B RF and microwave signal generator offers superior performance. It outperforms competing products by providing a pure output signal while maintaining the highest output power and lowest harmonics. As the world's number one signal generator, it performs demanding module and system test and measurement tasks in RF semiconductor, wireless communications, aerospace and defence.

  • Frequency range: 8 kHz to 3, 6, 12.75, 20, 31.8, 40, 50, and 67 GHz (up to 72 GHz in over-range mode)
  • SSB phase noise of -132 dBc (typical) at 10 GHz, 10 kHz offset
  • Broadband noise of -162 dBc at 10 GHz, 30 MHz offset (measured)
  • Maximum output power in excess of 30 dBm over a wide frequency range
  • Very low harmonics

Product specifications of Rohde & Schwarz R&S®SMA100B (From Used-Line T&M Specifications)

  • Launch Date Jun-2017
  • Frequency Range Min. 8 kHz
  • Frequency Range Max. 20 GHz
  • Freq. Resolution 1 mHz
  • Output Power +30 dBm
  • Modulation AM,FM,Pulse,Phase,Analog
  • Status --

The R&S®SMA100B RF and microwave signal generator delivers maximum performance without compromise. It provides purest output signals while maintaining the highest output power level, far outpacing the competition. As the world's leading signal generator, it can handle the most demanding component, module and system T&M tasks in the RF semiconductor, wireless communications and aerospace and defense industries.

  • Purest signals
    • Excellent SSB phase noise in base unit: <-119 dBc (typ.) for 10 GHz at an offset of 20 kHz
    • Outstanding SSB phase noise with option: <-132 dBc (typ.) for 10 GHz at an offset of 10 kHz
    • Lowest close-in SSB phase noise: <-83 dBc (typ.); f = 10 GHz, offset = 10 Hz
    • Virtually no wideband noise: <-162 dBc (meas.) at 10 GHz and an offset of 30 MHz
  • Lowest harmonic and nonharmonic signal components
    • Very low harmonic signal components over the entire frequency range (<-63 dBc) even at very high output power
    • Very low nonharmonic signal components of <-90 dBc (meas.) at 10 GHz
  • Exceptionally high output level
    • Ultra high output power up to 38 dBm with the 6 instrument
    • Over 30 dBm at 18 GHz and 28 dBm at 20 GHz
    • First stage high power upgrade via key code
  • Excellent level accuracy and repeatability for CW signals, narrow pulses and modulated signals

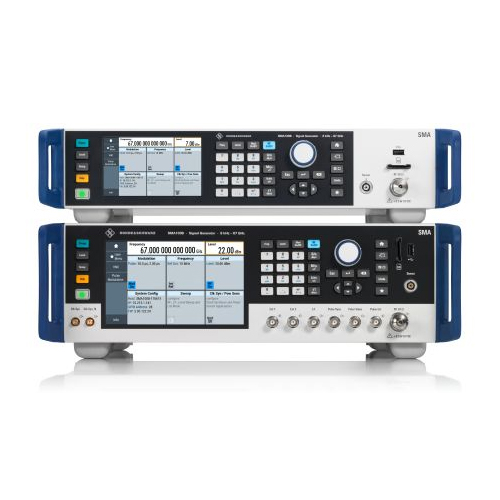

  • Flexible 2 HU or 3 HU housing
  • 3 HU with larger 7" display and multiple front panel connectors
  • Ergonomic operation thanks to state-of-the-art GUI with touch displayPlug and play the R&S®SMA100B in an automated test system without changing the test software
  • Emulation of R&S®SMA100A, R&S®SMF100A, Keysight PSG, Keysight MXG, etc.
