Keysight Technologies (Agilent HP) keysight N5182B

Send Request
Keysight Technologies (Agilent HP) keysight N5182B

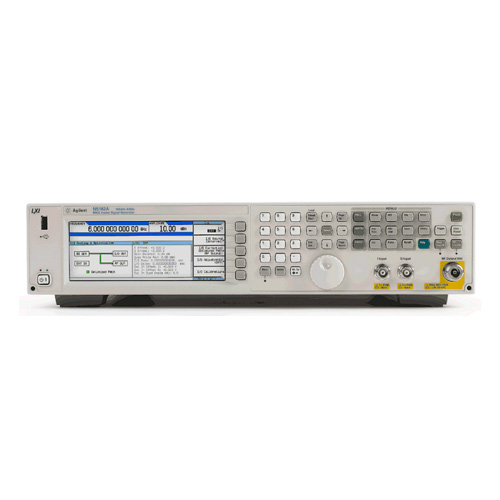

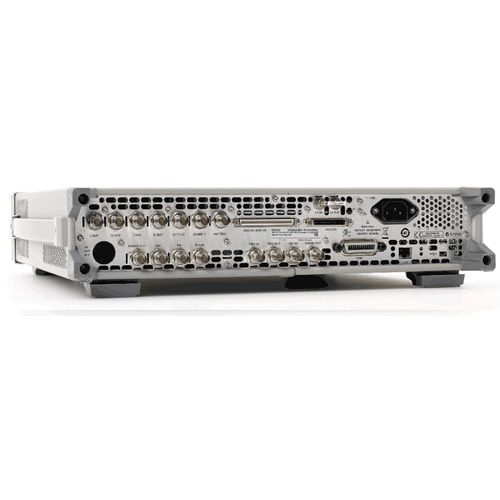

Image 2 of Keysight Technologies (Agilent HP) keysight N5182BImage 3 of Keysight Technologies (Agilent HP) keysight N5182B

 Add to request cart
Send to a Friend
Flag of ChinaEquipment Location: China
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) keysight N5182B

Categories: Generators, Signal Generators

Manufacturer: Keysight Technologies (Agilent HP)

Model: N5182B

Condition: Used

Seller: Shenzhen Mega Technologies Co.,ltd

keysight N5182B MXG X-Series RF Vector Signal Generator

The Keysight N5182B analog and vector MXG and EXG signal generators deliver unmatched performance in five key categories: phase noise and spectral purity, bandwidth, EVM, ACPR, and output power.

Perform advanced receiver testing compatible with the latest standards using the MXG or EXG and Signal Studio software: define signal parameters, transfer them to the instrument, and use closed-loop or interactive control during signal generation.

  • Take your designs to their limit with outstanding hardware performance, including unmatched phase noise and spurious characteristics.
  • Drive power amplifiers and characterize nonlinear behavior with industry-leading adjacent channel power ratio (ACPR) and output power.
  • Test wideband devices with factory-equalized 160 MHz RF bandwidth.
  • Reduce the time spent on signal creation with PathWave Signal Generation software, including LTE, WLAN, and GNSS.
  • Lower your cost of ownership with 3-year cal cycles and comprehensive solutions for self-maintenance.

Key specifications

  • Frequency ranges:  9 kHz to 6 GHz
  • Phase noise at 1 GHz, 20 kHz offset:  –146 dBc/Hz
  • Spurious at 1 GHz (nonharmonics) : –96 dBc
  • Output power at 1 GHz: +27 dBm
  • ACPR (vector) W-CDMA 64 DPCH: –73 dBc
  • EVM (vector) 802.11ac/LTE: 0.4 percent
  • Bandwidth (vector): 160 MHz
  • Arbitrary waveform memory (vector):  1024 MSa

Product specifications of Keysight Technologies (Agilent HP) keysight N5182B (From Used-Line T&M Specifications)

  • Launch Date May-2012
  • Frequency Range Min. 9 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Output Power Output power (minimum): -144 dBm, Output power (at 1 GHz): +27 dBm
  • Modulation AM,FM,Pulse,Phase,FSK,I/Q,ASK,MSK,PSK,QAM
  • See also N5171B, N5172B, N5181B
  • Status --

Whether you are pushing for a linear RF chain or an optimized link budget, the MXG delivers what you need: phase noise, ACPR, channel coding, and more.
Take your devices and designs to the limit with the MXG.

  • 9 kHz to 3 or 6 GHz
  • +24 dBm specified power to 3 GHz with electronic attenuator
  • -146 dBc phase noise at 1 GHz and 20 kHz offset
  • ≤-73 dBc ACP W-CDMA 64 DPCH and <0.4% EVM 160 MHz 802.11ac
  • AM, FM, ØM, and narrow pulse
  • 10 MHz multifunction generator and LF out
  • Digital step and list sweep modes
  •  l/Q Modulation: ASK, FSK, MSK, PSK, QAM, custom I/Q
  • Industry-leading ACPR and output power
  • 160 MHz internal baseband generator (+/- 0.2 dB flatness): arbitrary waveform and real-time I/Q
  • 1 Gsample playback memory and 30 GB internal or 8 GB external, removable memory
  • Arbitrary and real-time signals: LTE, HSPA+, WLAN, GNSS, DVB, and more
  • Multi-channel baseband generation with N5102A digital I/O, MIMO, and RF fading with PXB baseband generator and channel emulator
  • 1000BaseT LAN, LXI, USB 2.0, and GPIB
  • SCPI, IVI-COM, MATLAB drivers
  • Backward compatible with ESG, MXG, PSG, 8648x, and more
  • Agilent USB power sensor compatible with embedded display and SCPI control
  • Generate the signals you need with outstanding hardware performance
    • Test radar receiver sensitivity, characterize ADC or mixer signal-to-noise ratio, or find receiver out-of-band rejection with unmatched phase noise and spurious performance
    • Drive power amplifiers and characterize nonlinear behavior with industry-leading ACPR and output power
    • Test wideband receivers and components, such as for 802.11ac WLAN, with the only one-box, factory-equalized 160 MHz RF bandwidth solution
  • Maximize resources with low cost of ownership
    • Increase uptime with high mean time between failures (MTBF) based on first-generation MXG track record
    • Minimize downtime and expenses with self-maintenance strategy and low-cost repairs

N5182B MXG RF vector signal generator specifications:

  • Frequency range: 9 kHz to 6 GHz
  • Frequency switching (list mode): 800 µs
  • Sweep mode: Step, list
  • Output power (minimum): ‑144 dBm
  • Output power (at 1 GHz): +27 dBm
  • Harmonics (at 1 GHz): ‑35 dBc
  • Non-harmonics (at 1 GHz): ‑96 dBc
  • SSB phase noise (1 GHz, 20 kHz offset): ‑146 dBc/Hz
  • AM rate: DC to 50 kHz
  • FM deviation (maximum at 1 GHz): 4 MHz
  • PM phase deviation (maximum at 1 GHz): 2 rads
  • Narrow pulse width: 20 ns
  • RF I/Q modulation bandwidth: Up to 300 MHz
  • Baseband generator bandwidth: 160 MHz
  • Baseband generator mode: Waveform playback and real-time
  • Waveform playback memory: 1024 Msa
