Keysight Technologies (Agilent HP) Keysight E8257D

Send Request
Keysight Technologies (Agilent HP) Keysight E8257D

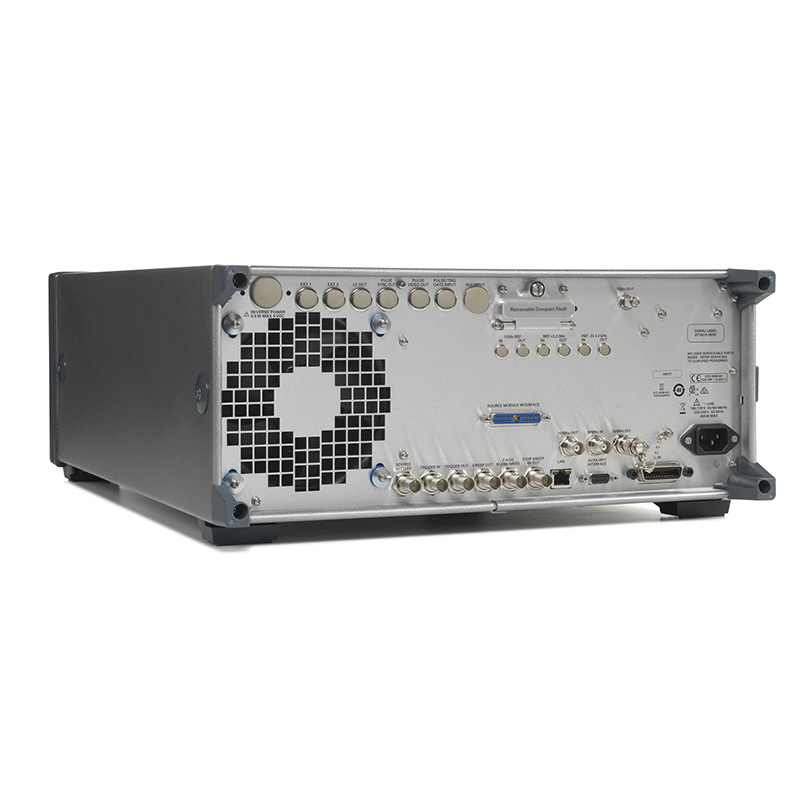

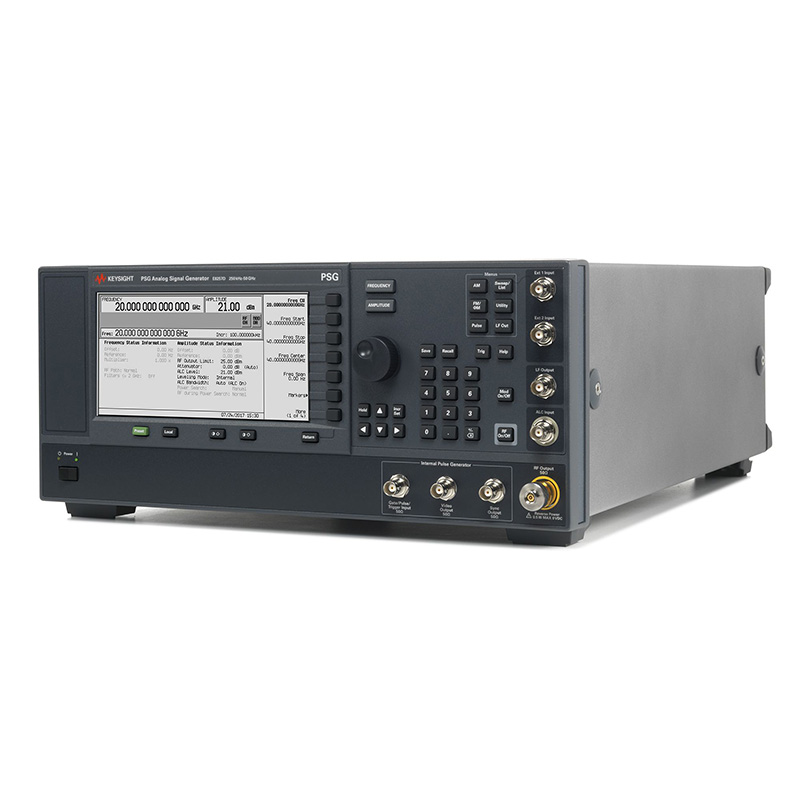

Image 2 of Keysight Technologies (Agilent HP) Keysight E8257DImage 3 of Keysight Technologies (Agilent HP) Keysight E8257D

 Add to request cart
Send to a Friend
Flag of ChinaEquipment Location: China
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) Keysight E8257D

Categories: Generators, Signal Generators

Manufacturer: Keysight Technologies (Agilent HP)

Model: E8257D

Condition: Used

Seller: Shenzhen Mega Technologies Co.,ltd

Keysight E8257D PSG Analog Signal Generator

The Keysight E8257D is a fully-synthesized signal generator with high output power, low phase noise, and modulation capability. Specifications apply over a 0 to 55 °C range, unless otherwise stated, and apply after a 45 minute warm-up time. Supplemental characteristics, denoted as typical, nominal, or measured, provide additional (non-warranted) information at 25 °C, which may be useful in the application of the product.

  • Take on your toughest test requirements with metrology-grade frequency and level accuracy, excellent distortion, and spurious characteristics
  • Measure across a wide frequency range: 13, 20, 31.8, 40, 50, and 67 GHz models available (1.1 THz with frequency extender)
  • Test high-power devices and overcome test system losses with options capable of generating up to 1 W (+30 dBm) of output power
  • Get extremely low phase noise: –91 dBc/Hz at 100 Hz offset and –126 dBc/Hz at 10 kHz offset (10 GHz), to address Doppler radar, ADC and receiver-blocking tests
  • Characterize devices and circuits by adding AM, FM, PM and pulse modulation to your signal

Product specifications of Keysight Technologies (Agilent HP) Keysight E8257D (From Used-Line T&M Specifications)

  • Launch Date Dec-2004
  • Frequency Range Min. 250 kHz
  • Frequency Range Max. 67 GHz
  • Freq. Resolution 1 mHz
  • Output Power typical performance of +23 dBm @ 20 GHz, + 17dBm @ 40 GHz, + 14 dBm @ 67 GHz with up to >+30 dBm with option 521
  • Modulation AM,FM,Pulse,Phase
  • Status --

The E8257D PSG analog signal generator delivers industry-leading output power, level accuracy, and phase noise performance up to 67 GHz (operational to 70 GHz). The E8257D PSG high output power and superior level accuracy often eliminates the need of an external amplifier for testing high power devices and minimizes test uncertainty to identify errors early in the design process. The world-class phase noise performance is ideal for local oscillator, low jitter clock substitution and adjacent channel selectivity tests. When testing advanced RF & microwave radar, communications, and control systems, the PSG delivers the performance you demand.

Now you have more options In addition to the standard E8257D PSG continuous wave (CW) generation, optionally add analog and/or pulse modulation to accurately characterize RF and microwave components and devices. These optional modulation types allow you to minimize your initial purchase price and stay well within your current budget constraints.

Customize the PSG to meet your needs Tailor the PSG for the RF and microwave test applications of today while easily upgrading in the future as requirements change. Choose from a variety of optional enhancements to configure the E8257D PSG for applications ranging from LO substitution and distortion test to radar test and interference signal generation.

  • Broad frequency ranges - 250 kHz to 20, 40, 50 or 67 GHz (operational to 70 GHz) with .001 Hz resolution
  • High output power - typical performance of +23 dBm @ 20 GHz, + 17dBm @ 40 GHz, + 14 dBm @ 67 GHz, >+30 dBm with option 521, with excellent level accuracy
  • High output power option to +26 dBm (measured)
  • World-class SSB phase noise - typical performance of -115 dBc/Hz at 10 kHz offset from 10 GHz carrier
  • Ultra-low phase noise performance option with up to 10 dB improvement on standard performance
  • Flexible analog modulation formats - AM, FM, ØM, and pulse
  • Dual internal function generators - sine, square, triangular, ramp, and noise waveforms
  • Easy frequency extension - up to 325 GHz with Oleson Microwave Labs (OML) mm-wave modules
  • Narrow pulse modulation - typical 8 ns rise/fall times and 20 ns pulse width from 10 MHz to 67 GHz
  • Multiple high rate sweep modes - digital step/list sweep and analog ramp sweep featuring code compatibility with the Agilent 8757D scalar network analyzer
  • External control using PSA Series spectrum analyzer – scalar network analysis capability when combined with any PSA with external source control option
  • Removable flash memory (8 GB)
  • Backwards compatible - same form factor and 100% code compatible with previous generations of PSG signal generators
  • Standard 1 year warranty - extendable to 5 years
