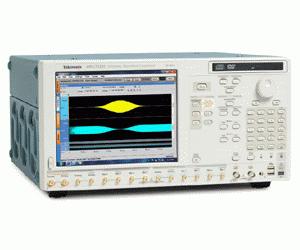

Tektronix AWG7082C

743 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days

The need for performance arbitrary waveform generation is broad and spans over a wide array of applications. The industry-leading AWG7000 Series arbitrary waveform generators (AWG) represent a cutting edge benchmark in performance, sample rate, signal fidelity, and timing resolution. The ability to create, generate, or replicate either ideal, distorted, or “real-life” signals is essential in the design and testing process. The AWG7000 Series of AWGs, with up to 24 GS/s and 10-bit vertical resolution, delivers the industry’s best signal stimulus solution for ever-increasing measurement challenges. This allows for easy generation of very complex signals, including complete control over signal characteristics.

• Samples rates ranging from 8 GS/s to 24 GS/s
• 9.6 GHz effective RF frequency output
• 7.5 GHz analog bandwidth
• Up to 64 M samples record length
• Down to 100 fs resolution edge timing control
• Vertical resolution up to 10 bits available:10 bits (without marker output) or 8 bits (with two marker outputs)
• 35 ps rise/fall time (20% to 80%)
• 9.6 GHz effective RF frequency output
• Advanced jitter generation software tool
• Support for major serial data standards
• Complex jitter creation such as ISI, random, periodic, SSC impairments
• S-Parameter channel emulation
• Generation of complex digital communications, radar and WiMedia waveforms with RFXpress® software tools
• Automated pattern calibration with a Tektronix oscilloscope
