Description of Yokogawa AQ6370D

Categories: Fiber Optics Comm, Optical Spectrum Analyzers

Manufacturer: Yokogawa

Model: AQ6370D

Condition: Used

Seller: Liberty Test Equipment, Inc.

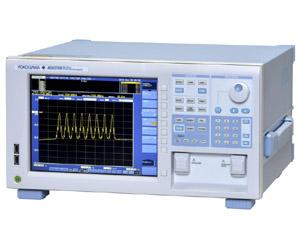

Yokogawa AQ6370D Optical Spectrum Analyzer 600nm to 1700nm

Product specifications of Yokogawa AQ6370D (From Used-Line T&M Specifications)

  • Launch Date Mar-2014
  • Form Factor Benchtop
  • Instrument Type Monochromator
  • Low end wavelength limit 600 nm
  • High End Wavelength Limit 1.7 µm
  • Wavelength Resolution 20 pm
  • Wavelength Accuracy ±0.01 nm (high performance)
  • Dynamic Range 78 dB typical at 0.05 nm resolutiondB
  • Status --

The Yokogawa AQ6370D benchtop optical spectrum analyzer, the successor to the company’s best-selling AQ6370C, incorporates a number of new functions designed to enhance its accuracy and analysis capabilities in the 600-1700 nm wavelength range. Newly added functions include data logging, gate sampling, resolution calibration, an advanced marker function and an enhanced auto-sweep mode.

There are two models available, Standard (AQ6370D-10) and High performance (AQ6370D-20). The High performance model provides even higher wavelength accuracy and dynamic range.

  • Wavelength range: 600 to 1700 nm
  • High wavelength accuracy: ±0.01 nm for the high performance model (C band), and ±0.02 nm for the standard model (C+L band)
  • High wavelength resolution: 0.02 nm
  • Wide dynamic range: 78 dB typical
  • Wide level range: +20 to -90 dBm
  • Fast measurement: 0.2 s (100 nm span)
  • Applicable to single-mode and multimode fibers
  • 7 wavelength resolution settings: from 20 pm to 2 nm
  • 7 level sensitivity settings: down to -90 dBm
  • Double Speed mode
  • High straylight suppression ratio: 80 dB typical
  • APC connector Level Correction function
  • 12 Built-in Analysis Functions for popular applications, such as WDM (OSNR) analysis, DFB-LD analysis, optical fiber amplifier analysis, LED analysis, spectral width analysis, and Go/No-Go judgement
  • Data Logging function for recording analysis results, such as WDM analysis, distributed feedback laser diode analysis, and multi-peak measurements at up to 10,000 points per channel with timestamps.
  • Advanced marker functions to obtain power density and integrated power of a designated spectrum
  • Gate sampling function for recirculating loop testing of optical transmission systems
  • Resolution calibration function for calibrating the noise equivalent bandwidth with an external light source
