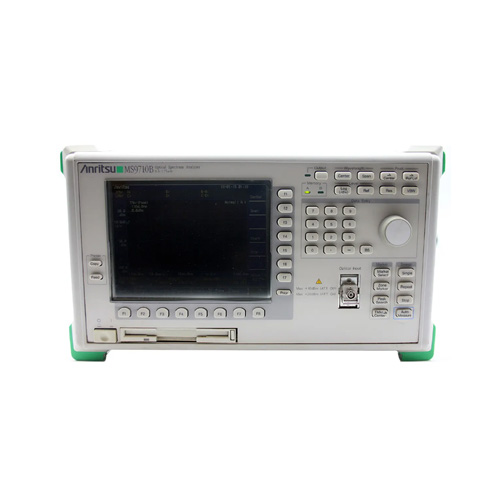

Image 2 of Anritsu Anritsu MS9710B

 Add to request cart
Send to a Friend
Flag of ChinaEquipment Location: China
View Description>
Hide Description

Description of Anritsu Anritsu MS9710B

Categories: Fiber Optics Comm, Optical Spectrum Analyzers

Manufacturer: Anritsu

Model: MS9710B

Condition: Used

Seller: Shenzhen Mega Technologies Co.,ltd

Anritsu MS9710B/A Spectrum Analyser

The MS9710B Spectrum Analyser is a derivative grating type spectrum analyser for analysing spectra in the 600 to 1750 nm band range. It features automatic measurement, automatic peak search, spectral width calculation, marker-to-marker spectral measurement, analysis of SMSR, curve fitting, OBPF testing, envelope analysis, n-dB attenuation, spectral power, WDM wavelength level signal-to-noise ratio, optical amplifier gain, noise figure, passive component testing, and a variety of light source analysis.

  • Wide wavelength range: 600-1750nm, covering all bands of singlemode and multimode
  • High wavelength accuracy and repeatability, accurate testing, wavelength accuracy of 1530-1570nm band can reach +/-50pm
  • 70dB dynamic range at 1nm from peak wavelengths
  • High sensitivity: -90dBm
  • Supports wavelength, power and SNR testing of DWDM channels.

Product specifications of Anritsu Anritsu MS9710B (From Used-Line T&M Specifications)

  • Launch Date
  • Form Factor Benchtop
  • Instrument Type Grating
  • Low end wavelength limit 600 nm
  • High End Wavelength Limit 1.8 µm
  • Wavelength Accuracy 0.05 nm
  • Dynamic Range 70 dB (±1 nm,resolution: 0.07 nm,1.55 µm band,high-dynamic range mode measurement,20° to 30°C)dB
  • See also MS9710C, MS9710C-15
  • Status Discontinued by Manufacturer

70 dB dynamic range 90 dBm guaranteed optical reception sensitivity Internal 3.5” FDD (Windows®) Tracking with tunable laser source Optical pulse measurement Full range of WDM application functions The MS9710B is a diffraction-grating spectrum analyzer for analyzing optical spectra in the 0.6 to 1.75 µm wavelength band. In addition to uses such as measurement of LD and LED spectra, it has functions for measuring the transmission characteristics of passive elements such as optical isolators, as well as the NF/Gain of optical fiber systems. In addition to its basic features, the superior stability and reliability of the diffraction grating (patent pending) easily pass the severe specifications required for precise measurement of WDM communications methods, particularly in the 1.55 µm band.
