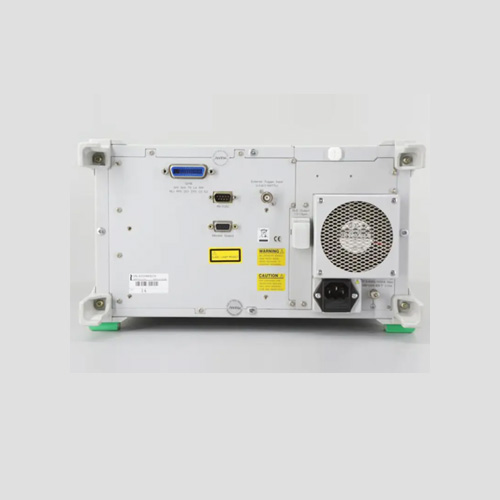

Anritsu Anritsu MS9710C

The MS9710C Spectrum Analyzer is a derivative grating type spectrum analyzer for analysing spectra in the 600 to 1750 nm band range. It features automatic measurement, automatic peak search, spectral width calculation, marker-to-marker spectral measurement, SMSR analysis, curve fitting, OBPF testing, envelope analysis, n-dB attenuation, spectral power, WDM wavelength level signal-to-noise ratio, optical amplifier gain, noise figure, passive component testing, and a variety of light source analyses, etc. The MS9710C is an upgraded version of the MS9710B. The MS9710C is an upgraded version of the MS9710B, with improved performance in wavelength accuracy, resolution bandwidth, and OSNR.

In particular, the MS9710C enhances the performance of the L-band from 1570 nm to 1620 nm, and the L-band enhancement option is the MS9710C-15.

• Wide wavelength range: 600-1750nm, covering all bands of singlemode and multimode
• High wavelength accuracy and repeatability, accurate testing, wavelength accuracy of 1530-1570nm band can reach +/-20pm
• 70dB dynamic range
• Dynamic range of 0.2nm from the peak wavelength is more than 42dB, 1nm from the peak wavelength of the dynamic range of 70dB, can be 50GHz channel spacing of the DWDM system for high-precision testing, in the WDM light source SNR testing and narrow-band optical band-pass filter evaluation, the MS9710C has excellent performance.
• High sensitivity: -90dBm
• Supports high power input: +23dBm
• Supports wavelength, power and SNR testing of 300 DWDM channels
