Tektronix PA4000

58 Visitors viewed AccuSource Electronics ads in the last 30 Days

Send Request

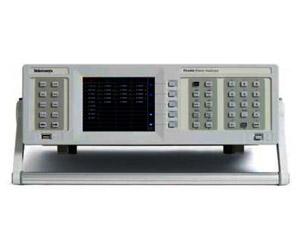

Tektronix PA4000
  • $3,995

    IN STOCK
 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Tektronix PA4000

Categories: Analyzers, Power Analyzers

Manufacturer: Tektronix

Model: PA4000

Condition: Used

Seller: AccuSource Electronics

Tektronix PA4000 / 15V / 4CH Power Analyzer. Four Channel Analyzer with option 15V...

Tektronix PA4000 / 15V / 4CH Power Analyzer. Four Channel Analyzer with option 15V Power Output for External Current Transducers.
In stock
Condition: Reconditioned

Product specifications of Tektronix PA4000 (From Used-Line T&M Specifications)

  • Launch Date Apr-2013
  • Input Channels 1, 2, 3, or 4
  • Instrument Type Portable
  • Interfaces RS-232,GPIB,Software,USB,LAN
  • Operation Modes Built-in PWM motor mode, lighting ballast mode, standby current mode, and integrator mode
  • Measurements Vrms, Arms, Watts, VA, VAR, FRQ, PF, Vpk+, Vpk-, Apk+, Apk-, Vdc, Adc, Vrmn, Armn, VCF, ACF, Vthd, VDF, VTIF, Athd, ADF, ATIF, VF, AF, IMP, RES, REA, HR, WHR, VAH, VRH, AHR, WAV, PFAV, CVAR
  • Status --

Featuring Spiral Shunt™ technology, the new Tektronix PA4000 Power Analyzer delivers consistently accurate measurements, even with challenging power waveforms. While most power analyzers rely on zero-crossing point to detect and track fundamental frequency, the PA4000 Power Analyzer uses a unique method to lock onto signals, no matter how complex. Add in wide current and voltage input ranges, built-in test modes and standard PC interfaces, and you have a power analyzer that’s as versatile as it is accurate.

  • One to four Input Modules allow several configurations to match your application
  • Uncompromised Measurement Accuracy: Have confidence in your measurements, even if your power is far from sinusoidal
  • Dual Spiral Shunt Current Shunts: Maximize stability over the entire current, frequency, and temperature range. Every input channel includes both a 1 A and a 30 A shunt for measuring from µW to kW with one instrument
  • Full Suite of Power Measurements: Covers your measurement requirements from RMS current and voltage to harmonics up to the 100th harmonic
  • Proprietary frequency detection algorithms ensure rock-solid frequency tracking even on noisy waveforms
  • High Crest Factor Tolerance: Measure accurately with current crest factors up to 10
  • Fast Autoranging for Voltage and Current Inputs: Responds quickly to changes in input levels, ensuring that you get good data even under variable conditions
  • Application-specific Test Modes: Built-in PWM motor mode, lighting ballast mode, standby current mode, and integrator mode, let you quickly configure for specific applications
  • USB, LAN and RS-232 interfaces come standard: Every instrument comes with common PC interfaces, and a USB flash drive port, making it easy to get your data.  PWRVIEW™ software is included with the instrument, and GPIB is available as an option
  • Many standard features such as comm ports and harmonic analysis eliminate costly upgrade options

PA4000 specifications:

  • Measurements: Vrms, Arms, Watts, VA, VAR, FRQ, PF, Vpk+, Vpk-, Apk+, Apk-, Vdc, Adc, Vrmn, Armn, VCF, ACF, Vthd, VDF, VTIF, Athd, ADF, ATIF, VF, AF, IMP, RES, REA, HR, WHR, VAH, VRH, AHR, WAV, PFAV, CVAR
  • Voltage ranges: 2 Vpeak - 2000 Vpeak
  • Current ranges
    • (30 A shunt): 0.1 Apeak to 200 Apeak
    • (1 A shunt): 0.0025 Apeak to 5 Apeak
  • Voltage accuracy, DC: ± 0.05% of Reading ± 0.1% of Range ± 0.05 V
