138 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days
Categories: Analyzers, Power Analyzers
Manufacturer: Keysight Technologies (Agilent HP)
Model: N6705B
Condition: Used
Seller: Liberty Test Equipment, Inc.
Keysight N6705B Opts: 056
Option: 056

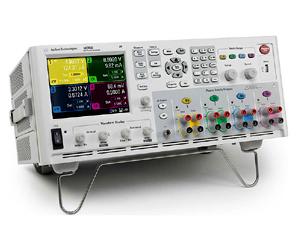

The Agilent N6705B is a DC power analyzer mainframe that holds one to four modules. The total available output power is 600 W. The N6715B is a built-to-order DC power analyzer system that consists of 1 N6705 mainframe with one to four optional DC power modules. The system is fully assembled and tested.
The N6705B DC Power Analyzer provides unrivaled productivity gains for sourcing and measuring DC voltage and current into the DUT by integrating up to 4 advanced power supplies with DMM, Scope, Arb, and Data Logger features. The N6705B eliminates the need to gather multiple pieces of equipment and create complex test setups including transducers (such as current probes and shunts) to measure current into your DUT. The DC Power Analyzer also eliminates the need to develop and debug programs to control a collection of instruments and take useful measurements because all functions and measurements are available at the front panel. For even greater control and analysis functions, the DC Power Analyzer can be used with the 14585A Control and Analysis Software. When automated bench setups are required, the N6705B is fully programmable over GPIB, USB, LAN and is LXI Class C Compliant.
The N6705B offers flexible configuration to meet your power sourcing and analysis requirements. The N6705B is a 4-slot mainframe that accepts up to 4 DC Power Modules, and up to 600 W total DC Power Module output power. The modules are ordered separately.
The N6705B accepts the same modules as the N6700 Modular Power System, with 24 modules to choose from. Basic sources for the N6705B include: 50 W, 100 W, and 300 W; up to 100 V, up to 50 A. High-performance sources for the N6705B include: 50 W, 100 W and 300 W; up to 60 V, up to 20 A. Precision sources for the N6705B include: 50 W and 100 W; up to 50 V, up to 3 A. Source/Measure units for the N6705B include: 20 W; up to 20 V, up to 3 A. Each module includes built-in voltmeter, ammeter, scope, arbitrary waveform generator, and data logger functions.
Supplemental characteristics of the N6705B:
