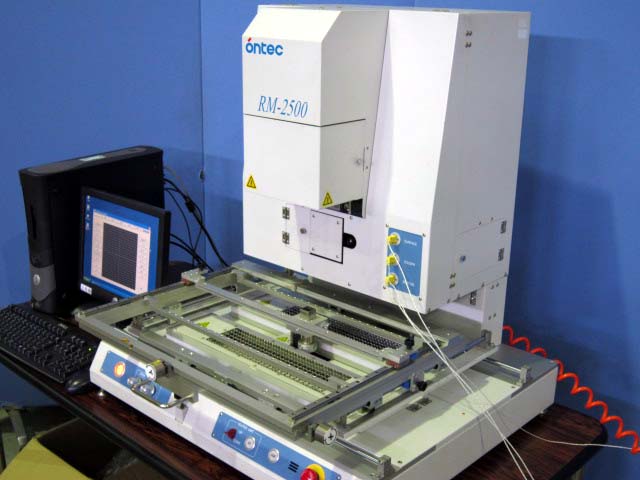

#04588 ONTEC Rework Machine RM-2500
Substrate size : 40 x 40mm~460 x 370mm(2 kg and under) Device size : 10~50mm(20kg and under)

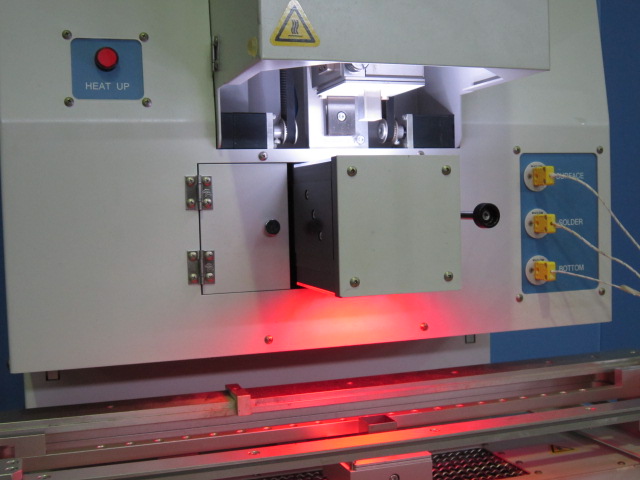

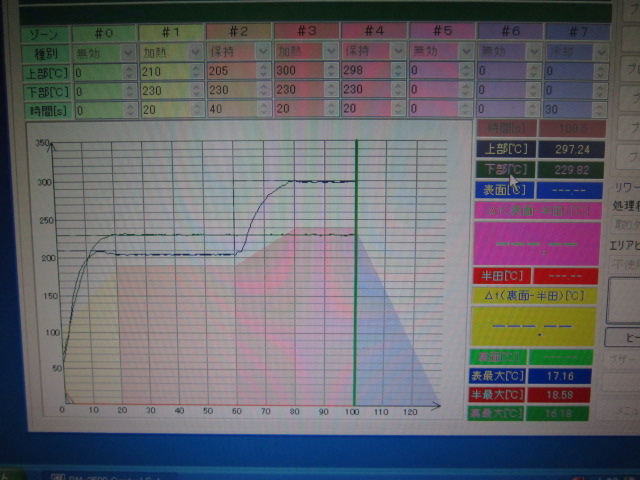

Temp. control 1)Upper spot heater : 1000W 2)Bottom spot heater : 1000W 3)Bottom area heater : 2000W Control system : Indipendent PID control

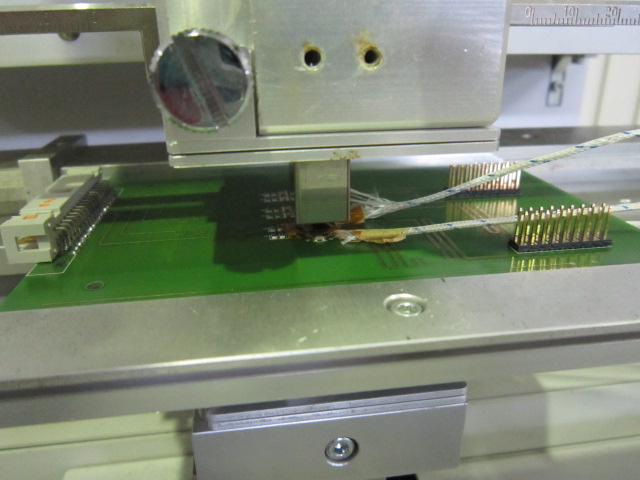

Positioning 1)Stage : XYZ theta manual operation 2)Camera : Color CCD camera 3)Lightning : Upper : white LED, bottom : red LED Dimension/Weight : W780 x D640 x H830mm/About 65 kg Air pressure supply source : 0.5MPa(200L/min and more) Power supply : 1 phase AC200V/220V 50/60Hz Electricity consumption : 4kVA
NOTE : Your company information is needed for our reply.
