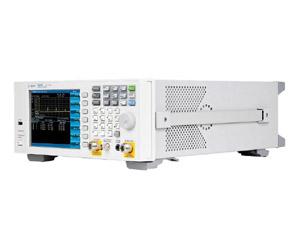

Keysight Technologies (Agilent HP) N9322C

140 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days

Send Request
Keysight Technologies (Agilent HP) N9322C

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) N9322C

Categories: Analyzers Spectrum, Agilent Spectrum Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: N9322C

Condition: Used

Seller: Liberty Test Equipment, Inc.

Keysight N9322C Opts: BB1/G01/RM7/TG7

Option: BB1/G01/RM7/TG7

Product specifications of Keysight Technologies (Agilent HP) N9322C (From Used-Line T&M Specifications)

  • Launch Date Dec-2012
  • Low end frequency limit 9 kHz
  • High End Frequency Limit 7 GHz
  • Resolution Bandwidth Min. 10Hz
  • Resolution Bandwidth Max. 3 MHz
  • Amplitude Range DANL to +20 dBm (Preamp off, 1 MHz to 7 GHz)
  • Status --

The Agilent N9322C (BSA) is a basic spectrum analyzer for budget-constrained applications in R&D, manufacturing, maintenance, education labs, spectrum management, bench repair and other general-purpose analyzer applications.  It helps you quickly uncover key insights during RF design and troubleshooting through superior, best-in-class RF performance.

  • 9 kHz to 7 GHz; internal pre-amplifier to 7 GHz
  • Typical -152 dBm DANL for viewing low-level signals easily and clearly
  • ±0.3 dB absolute amplitude accuracy
  • +10 dBm third order intercept (TOI)
  • ±0.7 dB frequency response
  • ±0.1 ppm annual aging rate, which reduces frequency drift for more accurate measurements
  • Time-gated spectrum analysis
  • One-button PowerSuite (CHP, OBW, ACPR, SEM and spectrogram), which makes power measurements and signal monitoring simple and intuitive
  • Channel scanner measures up to 20 channels simultaneously
  • Optional 7-GHz tracking generator with built-in VSWR bridge, which supports transmission and reflection measurements. Reflection measurements include: return loss, insertion loss and distance-to-fault
  • Demodulation mode to easily and cost-effectively gain more insight into AM, FM, ASK and FSK signal analysis
  • Seven user-definable soft keys, which provide quick access to seven of the most frequently used measurement setups, making it easy to switch from one task to another
  • USB and LAN connectivity (standard), GPIB interface (optional)
  • SCPI commands compatible with ESA spectrum analyzers
  • Supported by Agilent HSA and BSA PC software

N9322C specifications:

  • Frequency range: 9 kHz to 7 GHz
  • Frequency resolution: 1 Hz
  • Frequency span range (FFT and swept mode): 0 Hz (zero span), 100 Hz to 7 GHz, resolution 1 Hz
  • Sweep time and triggering
    • Range: 2 ms to 100 s, span ≥100 Hz; 600 ns to 1000 s, span = 0 Hz (minimum resolution = 600 ns, when RBW ≥30 kHz)
    • Mode: Continuous, Single
    • Sweep time rule: Accuracy or Speed
    • Trigger: Free run, video, external, RF burst
    • Trigger slope: Selectable positive or negative edge
    • Trigger delay: ±12 ms to ±12 s, nominal, span = 0 Hz
  • Resolution bandwidth (RBW) range (-3 dB bandwidth): 10 Hz to 3 MHz, resolution filter shape factor <5:1 nominal (60 dB/3 dB bandwidth ratio, digital, Gaussian-like)
  • Video bandwidth (VBW) range: 1 Hz to 3 MHz
  • Amplitude measurement range
    • 100 kHz to 1 MHz: Displayed average noise level (DANL) to +10 dBm, Preamp off
    • 1 MHz to 7 GHz: DANL to +20 dBm, Preamp off
    • Input attenuator range: 0 to 50 dB, in 1 dB steps
  • Maximum damage level
    • Average continuous power, input attenuator setting ≥20 dB, 2 MHz to 7 GHz: ≤+33 dBm, 3 minutes maximum
    • DC voltage, input attenuator setting ≥20 dB, 2 MHz to 7 GHz: ±50 Vdc maximum
  • Level display range
    • Scale units: dBm, dBmV, dBìV, dBmV EMF, dBìV EMV, V, W, V EMF
    • Marker level readout: 0.01 dB (log scale)
    • Resolution: <1% of signal level (linear scale)
    • Number of traces: 4
    • Detectors: Positive-peak, negative-peak, sample, normal, average (video, RMS, voltage)
    • Trace function: Clear/write, maximum hold, average, minimum hold
  • Preamplifier
    • Frequency range: 9 kHz to 7 GHz
    • Gain: 25 dB, nominal (100 kHz to 7 GHz), 15 dB, nominal (9 to 100 kHz)
  • 1 dB gain compression
    • Preamp off: >-5 dBm nominal, total power at input mixer
    • Preamp on: >-32 dBm nominal, total power at the preamp
  • Displayed average noise level (DANL), input terminated 50 Ω, 0 dB input attenuation, RBW = 1 kHz, RMS detector, average ≥40
    • Normalized to 1 Hz, preamp off: 9 to 100 kHz: -100 dBm, nominal; 100 kHz to 1 MHz, -108 dBm; 10 to 500 MHz, -142 dBm; 4 to 6 GHz, -138 dBm; 6 to 7 GHz: -136 dBm
    • With 10 Hz RBW, preamp on: 9 to 100 kHz: -100 dBm, nominal; 100 kHz to 1 MHz, -121 dBm; 10 to 500 MHz, -151 dBm; 4 to 6 GHz, -145 dBm; 6 to 7 GHz: -140 dBm
  • Spurious
    • Residual response, input terminated and 0 dB input attenuation, preamp off: <-90 dBm, -98 dBm typical
    • Second harmonic distortion, mixer signal level at -30 dBm, input attenuation 0 dB, preamp off: 50 MHz to 3 GHz, <-65 dBc; 3 to 7 GHz, <-70 dBc
    • Third-order intercept (TOI), two −20 dBm tones at input mixer, spaced by 100 kHz, input attenuation 0 dB, preamp off, reference level ≥−30 dBm: 50 to 300 MHz, +7 dBm; 300 MHz to 7 GHz, +10 dBm
    • Display: 165.1 mm (6.5 inch) diagonal, 640 x 480
  • Front panel inputs and outputs
    • RF input connector: N-type female, 50 Ω, nominal
    • VSWR, 10 MHz to 3 GHz, input attenuator ≥10 dBm or 20 dB fixed attenuation: <1.5:1, nominal
    • VSWR, 3 to 7 GHz: <2.0:1, nominal
    • Calibration output: Amplitude, −25 ± 0.25 dBm; frequency, 40 MHz; Connector and impedance, BNC-type female, 50 Ω, nominal
    • USB interface (host): A plug, version 1.1
  • Rear panel inputs and outputs
    • 10 MHz reference output: Output amplitude, >0 dBm; frequency, 10 MHz ±(10 MHz × frequency reference accuracy), connector and impedance, BNC-type female, 50 Ω, nominal
    • 10 MHz reference input: Input amplitude, -5 to +10 dBm, nominal; frequency, 10 MHz, connector and impedance, BNC-type female, 50 Ω, nominal
    • External trigger input: Input amplitude, 5 V TTL level, −12.6 V, 150 mA max (nominal); connector and impedance, BNC-type female, 10 kΩ
    • LAN TCP/IP interface: 100Base-T, RJ-45 connector
    • USB interface (device): B plug, version 1.1
    • Mini USB (device): Mini-AB female, version 1.1
    • GPIB interface: IEEE-488 bus connector, optional G01 installed
  • Options: Tracking generator, AM/FM modulation analysis (includes AM and FM measurement), ASK/FSK modulation analysis (includes ASK and FSK measurement), channel scanner, spectrum monitor, security erase method and port control, task planner, USB average power sensor support, USB peak and average power sensor support, baseband input
