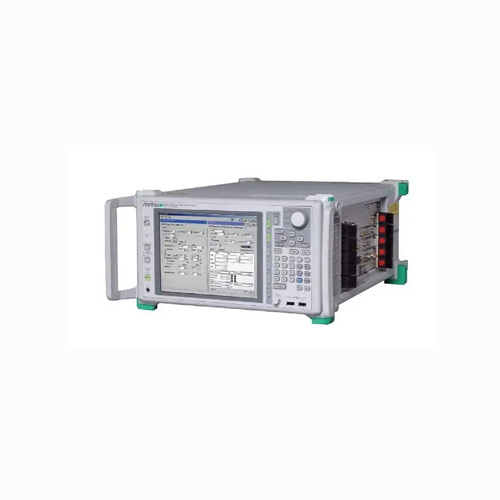

Anritsu Anritsu MP1800A

The Signal Quality Analyser MP1800A is a highly scalable plug-in, modular Bit Error Rate Tester (BERT). It integrates a Pulse Pattern Generator (PPG) module to generate the highest quality, highest amplitude signals in the industry, and a Bit Error Analyser (ED) module with the highest input sensitivity. The platform supports signal analysis including burst patterns, bath jitter and eye diagram measurements. Various types of jitter, such as SJ, RJ, BUJ, SSC, etc., can be generated using the built-in jitter modulation source that supports device jitter tolerance testing.

• BER test range 0.1 Gbit/s to 32.1 Gbit/s
• BER test range up to 64.2 Gbit/s with external MUX/DEMUX
• High-quality (12 ps rise/fall time) and low-jitter (8 ps p-p) PPG waveforms up to 3.5 Vp-p
• Ultra-high sensitivity BER analyser (10 mV typical)
• 32.1 Gbit/s fourth-order weighting with external MP1825B
• Simultaneous parallel BER and crosstalk detection for up to 32 channels
• Jitter tolerance test up to 32.1 Gbit/s
