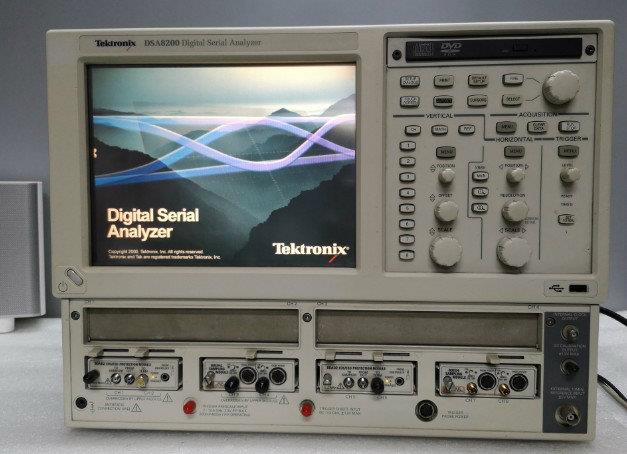

Tektronix Tektronix DSA8200

The Tektronix DSA8200 Digital Serial Analyzer provides unmatched measurement system fidelity with ultra-low jitter foor that ensures the most accurate acquisition of high-speed signals. You get advanced analysis benefits from the 200 fs acquisition jitter with the Phase Reference module. And in another step forward for a sampling oscilloscope, with the help of the Phase Reference module the DSA8200 can acquire and measure SSC (Spread Spectrum Clocking) signals.

Features and Benefits of the Tektronix DSA8200 include:

State-of-the-Art Sampling Oscilloscope for Communication Signal Analysis, TDR / TDT / Serial Data Network Analysis, Acquisition, and Measurements of Repetitive Ultrafast Signals

• Acquisition of Spread Spectrum Clocking (SSC) Signals
• Industry’s first Mainframe to Support up to 8 Input Channels for Increased Flexibility and Throughput
• Four Color-graded, Variable Persistence Waveform Databases
• Measurement System with Over 100 Automated Measurements
• Complete Suite of Communications Measurements includes Both Types of OMA, SSC Profile, and Many Others
• Automated ITU/ANSI/IEEE Mask Testing
• Masks and Measurements for SONET/SDH, FC, Ethernet, and Other Standards Built-in
• Mask Updates can be Loaded from Factory-supplied File
• Mask Margin Testing for Guard Banding Production Testing
