Categories: Meters, Intensity Meters
Manufacturer: Shimadzu
Condition: Used
Seller:

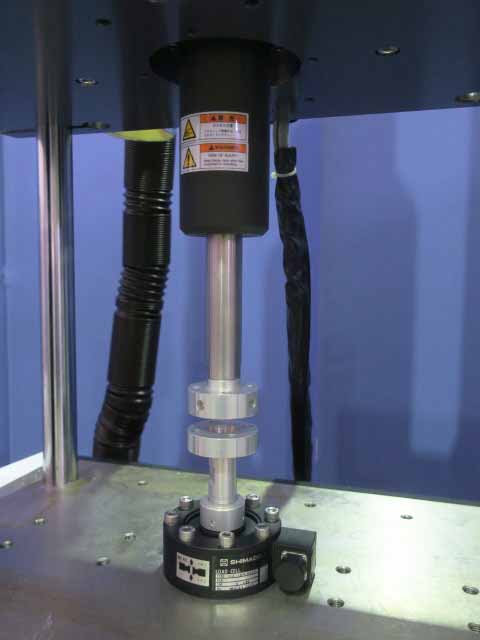

#08843 Electromagnetic Force Fatigue and Endurance Testing System
Model year : 2016
Maximum test force : ±1 kN (static and dynamic tests)
Stroke : ±50mm
Max. speed : 2m/s
Max. frequency : 200Hz
Frame drive mechanism : Electric
Test space : Distance between columns: 460 mm Jig mounting spacing: 0 to 700 mm

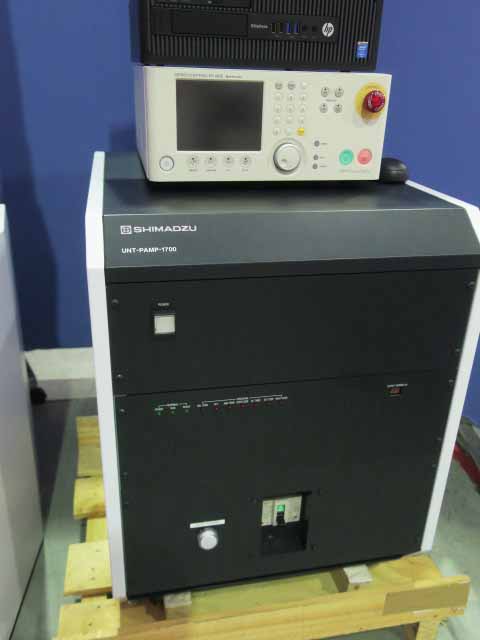

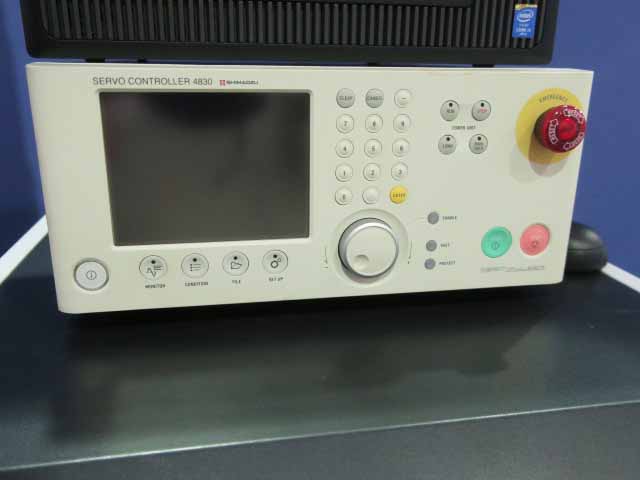

Weight : approx. 510 kg for main unit, approx. 60kg for power amplifier, approx. 8 kg for Controller
Power Requirements : 50/60 Hz, 3-phase, 200 V, 5 kVA
Power consumption at max load : 5kW
Used-Line Dealer since : 2001
Company info
We are specialized in
Our Services
Our Sales Policy
Disributor of
Use this form to contact a dealer from the Dealer Directory. You may contact up to 10 Dealers per day. Please note: Contact forms are monitored for spam. Users who send spam will be blocked from Used-Line.
To:
Remember me
*Contact name, email and message are required.
Product Specs
(From Used-Line T&M Specifications)
Shimadzu EMT-1kNV-50
Description:
