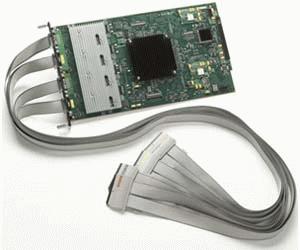

HP/Agilent/Keysight 16962A 68-Channel, 2 GHz State, 2 / 4 / 8 GHz Timing Logic Analyzer Module

Product specifications of Agilent HP 16962A (From Used-Line T&M Specifications)

  • Launch Date Mar-2009
  • Instrument Type Module
  • Max. Channels Number 68
  • Max. State Speed 2 GHz
  • Max. Timing Speed 2 GHz
  • Memory Depth 4 M
  • Options Memory to 100 M; slot interposer for high-speed memory bus access; probes, cables, and leads; retention modules; software
  • See also 16911A, 16950B, 16951B
  • Status --

The Agilent 16962A logic analyzer module delivers the performance required for the latest high-speed standards like DDR3 and QuickPath Interconnect (QPI). In addition to covering emerging standards, the 16962A provides conventional state and timing measurements on single-ended or differential signals at rates up to 2 GHz state and 8 GHz timing. The 100 M samples of memory ensure you capture enough system activity to troubleshoot complex systems.

  • Timing Analysis (Asynchronous Sampling)
    • Up to 125 ps (8 GHz), 400 M sample deep conventional timing analysis (2 GHz full-channel / 4 GHz half-channel / 8 GHz quarter-channel )
    • 2 GHz transitional timing
  • State Analysis (Synchronous Sampling)
    • State clock rates up to 2 GHz
    • Data rates up to 2 Gb/s (Double Data Rate – DDR) addresses all DDR speeds
    • Automated threshold/sample position setup for accurate measurements on high-speed buses
    • Simultaneous eye diagrams on all channels identify problems signals quickly
  • Configuration Considerations
    • 68-channels per module, combine up to 5 modules for 340 channels
    • Selectable memory depths: 4 M, 16 M, 32 M, 64 M, 100 M
    • Compatible with 90-pin logic analyzer probes
    • Compatible with 16902B logic analyzer mainframes
  • Additional Capabilities
    • 2 GHz trigger sequencer enables reliable trigger and capture of DDR3 1600 signals at speed
    • Comprehensive single-ended and differential support, threshold is adjustable
