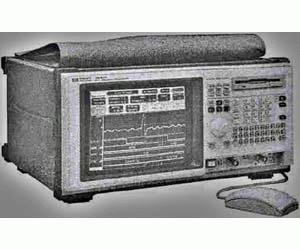

Agilent 1663A

118 Visitors viewed Rosenkranz Elektronik ads in the last 30 Days

Send Request
Agilent 1663A
  • €520

 Add to request cart
Send to a Friend
Flag of GermanyEquipment Location: Germany
View Description>
Hide Description

Description of Agilent 1663A

Categories: Analyzers Logic, Agilent Logic Analyzers

Manufacturer: Keysight Technologies (Agilent HP)

Model: 1663A

Condition: Used

Seller: Rosenkranz Elektronik

Keysight (Agilent/HP) 1663A Opts: no option

Logikanalysator 34 Kan??le
Option: no option

Product specifications of Agilent 1663A (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative 16800 Series Portable Logic Analyzer
  • See also 1660A, 1661A, 1662A
  • Status Discontinued by Manufacturer

The HP 1660A Series are 100-MHz State/500-MHz Timing Logic Analyzers.

  • 34 logic analyzer channels in the HP 1663A
  • Maximum State Speed: 100 MHz
  • Minimum State Clock Pulse Width: 3.5 ns
  • Minimum Master to Master Clock Time: 10.0 ns
  • Minimum Glitch Width: 3.5 ns
  • Maximum Conventional Timing Rate: 250 MHz full channel, 500 MHz half channel
  • Maximum Transitional Timing Rate: 125 MHz full channel, 250 MHz half channel
  • Maximum Timing with Glitch Rate: 125 MHz half channel
  • Threshold Accuracy: ± (100 mV + 3% of threshold setting)
  • Setup/Hold Time:
    • Single Clock, Single Edge 0.0/3.5 ns through 3.5/0.0 ns, adjustable in 500-ps increments
    • Single Clock, Multiple Edges 0.0/4.0 ns through 4.0/0.0 ns, adjustable in 500-ps increments
    • Multiple Clocks, Multiple Edges 0.0/4.5 ns through 4.5/0.0 ns, adjustable in 500-ps increments
  • Lightweight, passive probes for easy hookup and compatibility with previous Agilent logic analyzers and preprocessors
  • Compare, chart, and waveform displays
  • 3.5-inch disk drive
  • HP-IB and RS-232C interface
  • 4 kbytes deep memory on all channels with 8 kbytes in half channel mode
  • Marker measurements: Time Interval, Delta States, Patterns, Statistics functions
  • 12 levels of trigger sequencing for state and 10 levels of sequential triggering for timing
  • 100 MHz time and number-of-states tagging
  • Full programmability
