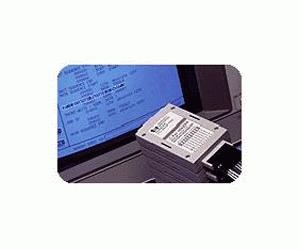

HP / Agilent Agilent HP 16522A -T200 M Vector/Sec Pattern Generator Module for 16700A, 16702A.

Agilent HP 16522A -T200 M Vector/Sec Pattern Generator Module for 16700A, 16702A.
In stock
Condition: Used

Product specifications of Agilent 16522A (From Used-Line T&M Specifications)

  • Launch Date
  • Status Discontinued by Manufacturer

The Agilent 16522A digital pattern generator module is the perfect tool for functional testing of your digital design. The pattern generator allows you to check the functional characteristics of your system. See how your system responds to unanticipated signals or clock speeds. Correlate data captured with other Agilent logic analysis system modules to verify correct operation. Use the pattern generator module in automated test environments to run design qualification tests quickly, using only one instrument. Save time normally spent developing custom test hardware used for stimulus.

  • Vectors up to 200 bits wide
  • Synchronized Clock Output
  • Wait for input pattern
  • Output Channnels: 20 channels at 200 MHz clock; 40 channels at 100 MHz clock
  • Memory Depth: 258,048 vectors
  • Logic Levels (data pods): TTL, 3-state TTL/3.3v, 3-state TTL/CMOS, ECL terminated, ECL unterminated, and differential ECL (without pod)
  • Data Inputs: 3-bit pattern level sensing (clock pod)
  • Clock Output: Synchronized to output data, delay of 11 ns in 9 steps (clock pod)
  • Clock Input: DC to 200 MHz (clock pod)
  • Internal Clock Period: Programmable from 5 ns to 250 us in a 1, 2, 2.5, 4, 5, 8 sequence
  • External Clock Period: DC to 200 MHz
  • External Clock Duty Cycle: 2 ns minimum high time
  • Maximum Number of "IF Condition" Blocks at 50 MHz: 1
  • Maximum Number of Different Macros: 100
  • Maximum Number of Lines in a Macro: 4096
  • Maximum Number of "Wait" Event Patterns: 4
