Here you will find a large selection of new and used Rohde & Schwarz FSH3 listed at special prices. Although some items match several categories, all of them are listed here, no matter what category or subcategory they have been placed in. You may sort the listings from $7596 to $1998 or in reverse. You also have the option of showing only ads that have been posted in the last 24 hours.

Rohde & Schwarz FSH3 (FSH Series) Main Features and Specifications

Product Specs

  • Low end frequency limit 100 kHz
  • High End Frequency Limit 3 GHz
  • Resolution Bandwidth Min. 100Hz
  • Resolution Bandwidth Max. 1 MHz
  • Amplitude Range DANL to +20 dBm
  • Status -

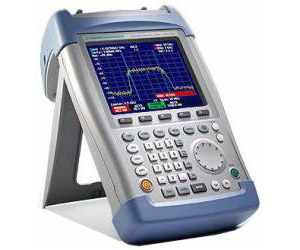

The Rohde & Schwarz FSH is the ideal spectrum analyzer for rapid, high-precision, cost-effective signal investigations. It provides a large number of measurement functions and so can handle anything from the installation or maintenance of a mobile radio base station up to on-site fault location in RF cables as well as development and service an extensive range of applications.

  • Displayed average noise level typ. -135 dBm (RBW 100 Hz)
  • 0.5 dB typ. level accuracy up to 6 GHz
  • Resolution bandwidths 100 Hz to 1 MHz, 1 and 3 steps (Model 13 1 kHz to 1 MHz)
  • Wide range of detectors: sample, max/min peak , auto peak, RMS
  • TOI  typ. 13 dBm
  • SSB phase noise <–100 dBc (1 Hz) at 100 kHz from carrier
  • Level measurement uncertainty<1.5 dB, typ. 0.5 dB
  • Reference level –80 dBm to +20 dBm
  • Model 03 includes a preamplifier
  • Model 13 includes a tracking generator (output power: -20 dBm)
  • Model 23 includes a preamplifier and tracking generator (output power: -20 dBm/0 dBm)
