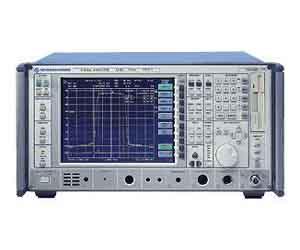

The R&S®FSIQ Signal Analyzer is a one box solution in signal analysis. The FSIQ provides comprehensive and easy-to-use measurement functions in the Frequency, Time, and Modulation domains. With its extremely wide dynamic range, minimal measurement uncertainty and high flexibility, FSIQ from Rohde&Schwarz is the ideal instrument for development, verification and quality assurance but also in the production of base stations.
The FSIQ family is a follow-on development from spectrum analyzers of the FSE series. Characteristics like dynamic range, accuracy and phase noise were further improved for highly demanding measurements on W-CDMA signals.
Because of the CDMA transmission used in mobile radio of the third generation, adjacent-channel power measurement is of particular importance. The wide dynamic range of the FSIQ is an essential feature especially when components like high-power output stages are measured, whose specifications must be far superior to those of the overall system. With a TOI of 20 dBm (FSIQ7), noise figure of 15 dB and typical phase noise of –153 dBc/Hz at 5 MHz from the carrier and –155 dBc/Hz at 10 MHz, FSIQ achieves more than 75 dB dynamic range in the adjacent channel and more than 85 dB in the alternate channel.
FSIQ models and frequency ranges:
FSIQ features:
