Keysight Technologies (Agilent HP) N6700 Series - Mainframes and Systems (N6700 Series) Main Features and Specifications

Product Specs

  • Number of Outputs Modular
  • Max. Voltage 100V
  • Max. Current 20A
  • Ripple and Noise 0.35 mVrms
  • Computer Interface GPIB,USB 2.0
  • Status -

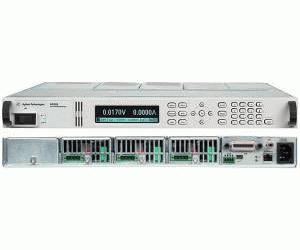

The Agilent N6700 Low-Profile Modular Power System simplifies test-system assembly, programming, debugging and operation. The flexibility, small size, and fast command processing time of the system make it ideal for ATE and production test environments.

The N6700 Series includes the following mainframes and configured systems:

  • Low-Profile Modular Power System Mainframes, 1 U, 4-slot mainframes that accept 1 to 4 compatible modules in any combination. Modules are ordered separately
    • N6700B: 400 W
    • N6701A: 600 W
    • N6702A: 1200 W
  • Custom Configured Modular Power Systems. Built-to-order systems that are shipped as fully tested and assembled multiple-output power supplies
    • N6710B: 400 W
    • N6711A: 600 W
    • N6712A: 1200 W

The Agilent N6700 Low-Profile Modular Power System simplifies test-system assembly, programming, debugging and operation. Its flexibility, small size, and fast command processing time make it ideal for ATE and production test environments.

  • Use modular system for up to 4 outputs of up to 300W per output in 1U of rack space
  • Choose from up to 22 different DC power modules
  • Perform remote programming via GPIB, LAN and USB interfaces with SCPI command set (drivers available)
  • LXI Class C Compliant
  • Perform rapid voltage changes via fast output programming with active downprogramming
  • Synchronize to other events in your ATE system with advanced hardware and software triggering
  • Achieve true isolation with optional built-in mechanical disconnect relays, available at time of purchase
  • Simplify cabling with built-in measurements
  • Capture transient events with optional built-in digitizer (up to 50 kHz, 4096 points)
  • Streamline tasks with front panel control and advanced programmable including automated sequencing of up to 512 output settings
  • Ensure DUT safety with protection features
