Keysight Technologies (Agilent HP) N5162AK

138 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days

Send Request
Keysight Technologies (Agilent HP) N5162AK

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) N5162AK

Categories: Generators, Signal Generators

Manufacturer: Keysight Technologies (Agilent HP)

Model: N5162A

Condition: Used

Seller: Liberty Test Equipment, Inc.

Keysight N5162AK Customer Installable Upgrade or Service Options for the N5162A

Product specifications of Keysight Technologies (Agilent HP) N5162AK (From Used-Line T&M Specifications)

  • Launch Date
  • Alternative N5182A MXG RF Vector Signal Generator
  • Frequency Range Min. 100 kHz
  • Frequency Range Max. 6 GHz
  • Freq. Resolution 10 mHz
  • Output Power -127 to +23 dBm
  • Modulation AM,FM,Pulse,Phase,Vector,Analog
  • Status Discontinued by Manufacturer

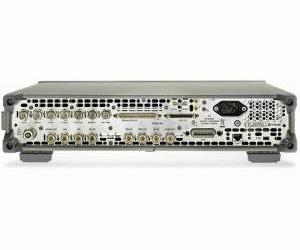

The N5162A MXG ATE RF signal generator provides the same industry-leading performance, reliability, and form factor (2RU) of the popular N5182A MXG -- all at a reduced price. This signal generator has been streamlined for automated test equipment (ATE) needs with the removal of the front-panel display and all connectors relocated to the rear panel for convenient and secure rack configurations. Combining the outstanding MXG performance with a base price reduction over the N5182A MXG signal generator, makes the N5162A MXG ATE vector signal generator ideally suited for today’s demanding production environment.

Simplified self-maintenance decreases time for repair and performance verification, keeping downtime to less than 2 hours using field-replaceable assemblies.

  • 100 kHz to 3 or 6 GHz (view options and price list)
  • +23 dBm up to 3 GHz using a highly-reliable, fast-switching electronic attenuator
  • ≤ -121 dBc/Hz phase noise at 1 GHz and 20 kHz offset (typical)
  • ≤1.2 ms switching speed in SCPI mode; ≤900 μs simultaneous frequency, amplitude, and waveform switching in list mode
  • AM, FM, øM, and pulse
  • Digital step and list sweep with simultaneous switching of frequency, power, and waveform
  • Internal baseband generator (100 MHz RF BW; up to 125 Msa/s sample rate): arbitrary waveform only
  • Up to 64 MSa playback memory and 800 MSa storage
  • Create reference signals: WLAN, WiMAX™, W-CDMA, cdma2000®, GSM, TD-SCDMA, and more
  • W-CDMA dynamic range: -73 dBc at +5 dBm output power for 1-carrier and ≤-67 dBc for 4-carrier (typical)
  • 100BaseT LAN, USB 2.0, and GPIB
  • LXI class-C compliant
  • SCPI and IVI-COM drivers
  • Backwards compatible with all ESG, PSG, 8648 signal generators, and other vendors´ signal generators
