Keysight Technologies (Agilent HP) E8257D-520

Send Request
Keysight Technologies (Agilent HP) E8257D-520
Image 2 of Keysight Technologies (Agilent HP) E8257D-520Image 3 of Keysight Technologies (Agilent HP) E8257D-520Image 4 of Keysight Technologies (Agilent HP) E8257D-520Image 5 of Keysight Technologies (Agilent HP) E8257D-520
  • $27,500

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Keysight Technologies (Agilent HP) E8257D-520

Categories: Generators, Signal Generators

Manufacturer: Keysight Technologies (Agilent HP)

Model: E8257D

Condition: Used

Seller: RF Test Equipment Solutions

Keysight Agilent E8257D 250kHz-20GHz PSG Microwave Analog Signal Generator with options

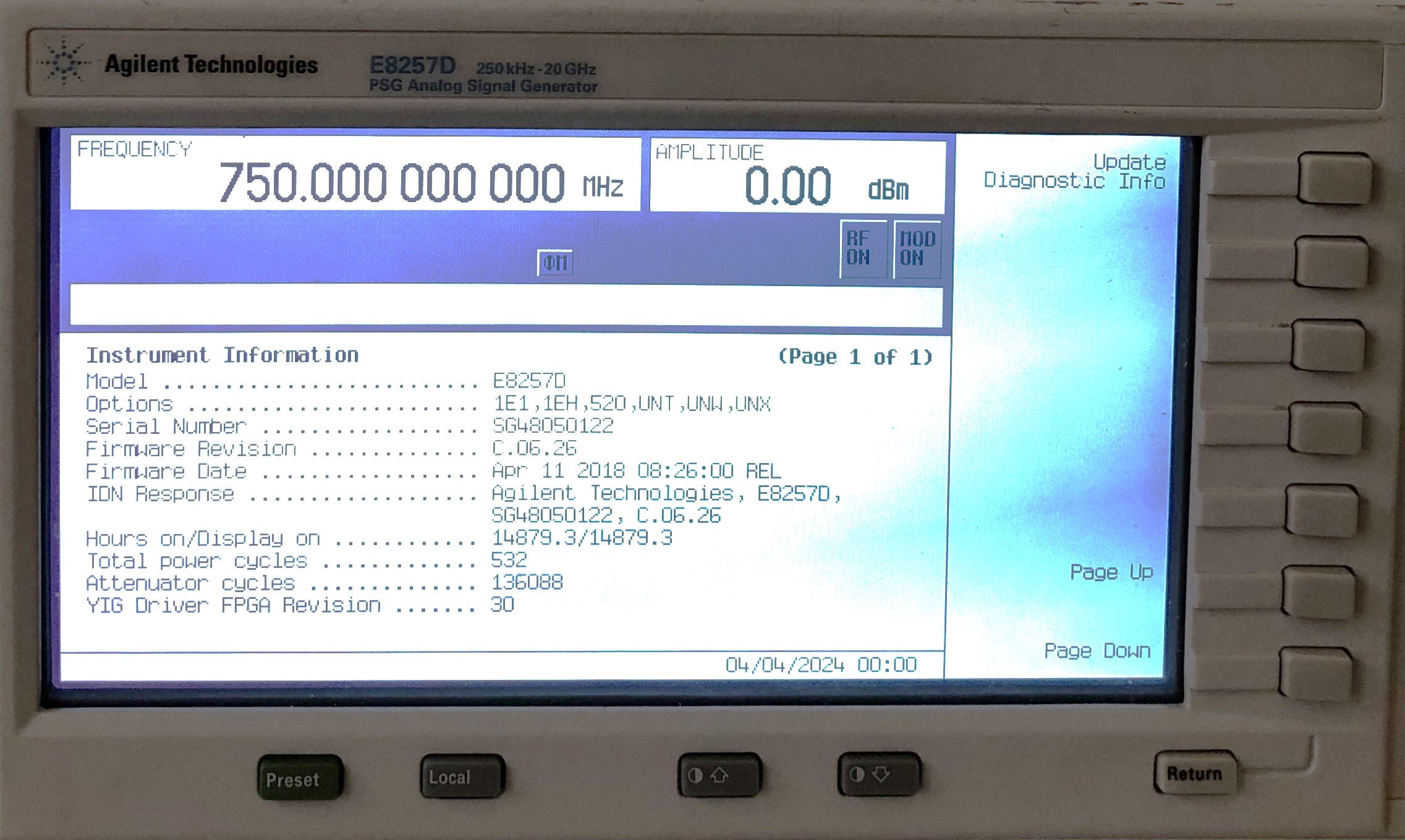

Keysight Agilent E8257D 250kHz-20GHz PSG Microwave Analog Signal Generator with options 520, 1E1, 1EH, UNT, UNW, and UNX (see below for descriptions)

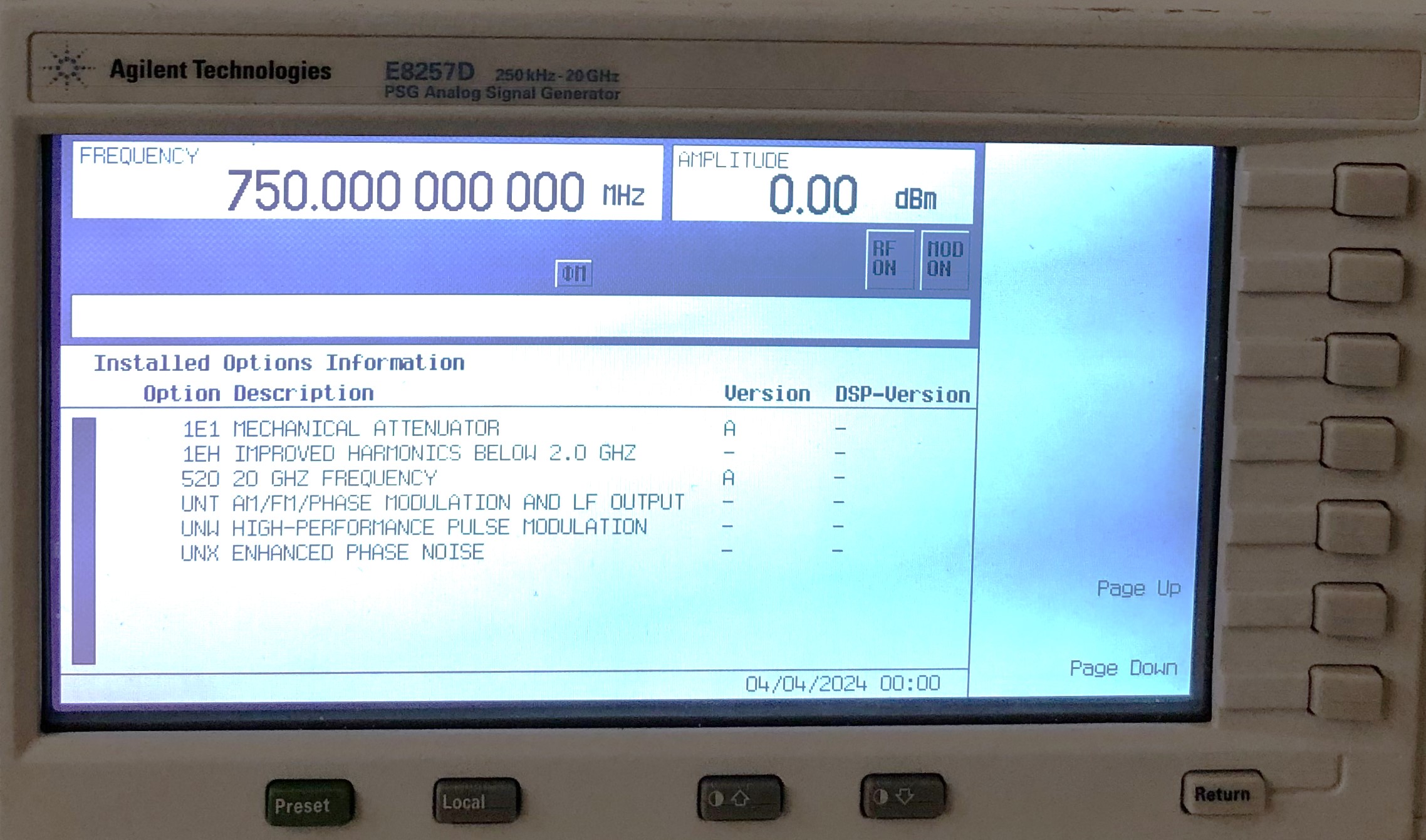

Options Installed:
520 – 250kHz to 20GHz Frequency Range
1E1 – Step attenuator
1EH – Improved harmonics below 2 GHz
UNT – AM, FM, phase modulation, and LF output
UNW – Narrow pulse modulation
UNX – Ultra-low phase noise performance

Product specifications of Keysight Technologies (Agilent HP) E8257D-520 (From Used-Line T&M Specifications)

  • Launch Date Dec-2004
  • Frequency Range Min. 250 kHz
  • Frequency Range Max. 67 GHz
  • Freq. Resolution 1 mHz
  • Output Power typical performance of +23 dBm @ 20 GHz, + 17dBm @ 40 GHz, + 14 dBm @ 67 GHz with up to >+30 dBm with option 521
  • Modulation AM,FM,Pulse,Phase
  • Status --

The E8257D PSG analog signal generator delivers industry-leading output power, level accuracy, and phase noise performance up to 67 GHz (operational to 70 GHz). The E8257D PSG high output power and superior level accuracy often eliminates the need of an external amplifier for testing high power devices and minimizes test uncertainty to identify errors early in the design process. The world-class phase noise performance is ideal for local oscillator, low jitter clock substitution and adjacent channel selectivity tests. When testing advanced RF & microwave radar, communications, and control systems, the PSG delivers the performance you demand.

Now you have more options In addition to the standard E8257D PSG continuous wave (CW) generation, optionally add analog and/or pulse modulation to accurately characterize RF and microwave components and devices. These optional modulation types allow you to minimize your initial purchase price and stay well within your current budget constraints.

Customize the PSG to meet your needs Tailor the PSG for the RF and microwave test applications of today while easily upgrading in the future as requirements change. Choose from a variety of optional enhancements to configure the E8257D PSG for applications ranging from LO substitution and distortion test to radar test and interference signal generation.

  • Broad frequency ranges - 250 kHz to 20, 40, 50 or 67 GHz (operational to 70 GHz) with .001 Hz resolution
  • High output power - typical performance of +23 dBm @ 20 GHz, + 17dBm @ 40 GHz, + 14 dBm @ 67 GHz, >+30 dBm with option 521, with excellent level accuracy
  • High output power option to +26 dBm (measured)
  • World-class SSB phase noise - typical performance of -115 dBc/Hz at 10 kHz offset from 10 GHz carrier
  • Ultra-low phase noise performance option with up to 10 dB improvement on standard performance
  • Flexible analog modulation formats - AM, FM, ØM, and pulse
  • Dual internal function generators - sine, square, triangular, ramp, and noise waveforms
  • Easy frequency extension - up to 325 GHz with Oleson Microwave Labs (OML) mm-wave modules
  • Narrow pulse modulation - typical 8 ns rise/fall times and 20 ns pulse width from 10 MHz to 67 GHz
  • Multiple high rate sweep modes - digital step/list sweep and analog ramp sweep featuring code compatibility with the Agilent 8757D scalar network analyzer
  • External control using PSA Series spectrum analyzer – scalar network analysis capability when combined with any PSA with external source control option
  • Removable flash memory (8 GB)
  • Backwards compatible - same form factor and 100% code compatible with previous generations of PSG signal generators
  • Standard 1 year warranty - extendable to 5 years
