Description of Keysight Technologies 81134A

Categories: Generators, Pattern Generators

Manufacturer: Keysight Technologies (Agilent HP)

Model: 81134A

Condition: Used

Seller: TRS-RenTelco

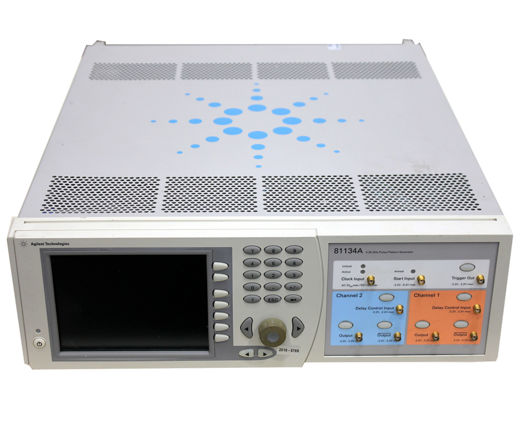

Keysight Technologies 81134A

Perform precise and in-depth characterization of devices with high performance and rapid timing with the Keysight (formerly Agilent) 81134A Pulse Pattern Generator. The 81134A is distinguished by fast rise times and low intrinsic jitter.

With its 8kB pattern memory and hardware PRBS generation complying with the most commonly used standards, the 81134A is an ideal data and pattern source, particularly for eye diagram measurements. The 81134A also finds use in high-speed serial bus applications, such as PCI Express, Infiniband, and Serial ATA.

Keysight (Formerly Agilent) 81134A Features and Specifications:

  • Two channels ? Frequency range from 15MHz to 3.35GHz
  • Programmable pulse periods from 66.6 ns to 298.5 ps
  • Low jitter (< 2 ps RMS), high accuracy
  • LVDS applications can be addressed with output levels from 50 mV to 2.00 V
  • PRBS from 25 -1 to 231 -1
  • Fast rise times (20 to 80 percent) < 50 ps
  • Delay modulation (jitter emulation)
  • Variable crossover point (eye deformation)
  • 8 Kbit data pattern memory, RZ, NRZ, R1, burst capability
  • Graphical user interface (GUI)
  • All inputs and outputs are SMA connectors

You can buy, rent, or lease the Keysight (formerly Agilent) 81134A Pulse Pattern Generator from TRS-RenTelco with 365-days support. Request a quote today.

Product specifications of Keysight Technologies 81134A (From Used-Line T&M Specifications)

  • Launch Date
  • See also 81133A
  • Status --

The 81134A offers hardware-based PRBS and memory-based pattern generation. Basic test patterns for Infiniband, PCI-Express and Serial ATA can be defined. The deep 12 MBit pattern memory per channel supports tests that require long data streams like disk drive tests. With the new PC-based Pattern Management Tool, it is now even easier to handle long patterns. The tool allows to generate, modify and store patterns on a Microsoft Windows based PC. In addition, it provides an easy-to-use function to quickly load the selected pattern to the 81134A via one of the remote control interfaces GPIB, LAN or USB.

  • Frequency range from 15 MHz - 3.35 GHz
  • Two ouput channels
  • Low jitter
  • Fast rise times (20%-80%) < 60 ps
  • Delay modulation (jitter emulation)
  • Variable cross-over point
  • LVDS applications can be addressed with output levels from 50 mV to 2 V
  • Pre-/de-emphasis and squelch levels for PCI Express and serial ATA
  • PRBS from 25-1 to 231-1
  • 12 MBit data pattern memory, RZ, NRZ, R1 modes
  • 8 kBit data Burst capability
  • Graphical User Interface
  • PC-based Pattern Management Tool
  • Remote control via GPIB, 10/100 MBit Ethernet and USB 2.0
  • SMA connectors for all inputs & outputs
