IN STOCK
Categories: Generators, Arbitrary Waveform Generators
Manufacturer: Tektronix
Model: AWG7061B
Condition: Used
Seller: Ceyuan Electronic Intrument Co., Ltd

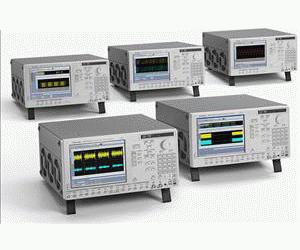

Tektonix DESCRIPTION OF AWG7061B TEKTRONIX ARBITRARY WAVEFORM GENERATORS AWG7061B -...
Condition: GoodDESCRIPTION OF AWG7061B TEKTRONIX ARBITRARY WAVEFORM GENERATORSAWG7061B - Tektronix Arbitrary Waveform Generators The AWG7000B Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth, and uncompromised usability.This family offers the industry s best solution to the challenging signal stimulus issues faced by designers verifying, characterizing and debugging sophisticated electronic designs.The direct synthesis signal generation enables a variety of signal outputs including multi-level, Pre/de-emphasis, Jitter (Rj, Pj, ISI, DCD), SSC, and wander elements.With sample rates from 6 Gsample/sec to 24 Gsample/sec (with up to 10 bit resolution), together with one or two output channels, the toughest signal generation challenges in the high-speed serial communication and wideband RF applications can easily be solved. The open Windows (Windows XP) based instruments deliver ease of use and allow unparalleled connectivity with peripherals and compatibility with third-party software.12 GS/s (24 GS/s) and 6 GS/s Models9.6 GHz Effective RF Frequency Output1 or 2 Arbitrary Waveform OutputsAccurate Timing with only 20 psp-p Total Jitter (at 10-12 BER, Typical)35 ps Tr/Tf (20% to 80%)±100 ps Range (1 ps Resolution) Inter Channel Skew Control2 or 4 Variable Level Marker OutputsAccurate Timing with only 30 psp-p Total Jitter (at 10-12 BER, Typical)45 ps Tr/Tf (20% to 80%)Up to 300 ps Range (1 ps Resolution) Delay ControlVertical Resolution up to 10-Bit Available: 10-Bits (No Marker Output) or 8-Bits (with Two Marker Outputs)Up to 64 M (64,800,000) Point Record Length Provides Longer Data StreamsDown to 100 fs Resolution Edge Timing Shift Control16,000 steps Sequencing Creates Infinite Waveform Loops, Jumps and Conditional BranchesReal-time Sequencing Creates Infinite Waveform Loops, Jumps, and Conditional BranchesIntuitive User Interface Shortens Test TimeIntegrated PC Supports Network Integration and Provides a Built-in DVD, Removable Hard Drive, LAN, and USB PortsHigh-speed Signal GenerationMultilevel Signal GenerationSignal Generation for Storage Device TestingWideband RF Signal GenerationSoftware for Creating the Exact Waveforms Required for Design ValidationIn stock
The AWG7000B Series Arbitrary Waveform Generator delivers a unique combination of superior signal stimulus, unrivaled sample rate, bandwidth, and uncompromised usability.
This family offers the industry’s best solution to the challenging signal stimulus issues faced by designers verifying, characterizing and debugging sophisticated electronic designs.
The direct synthesis signal generation enables a variety of signal outputs including multi-level, Pre/de-emphasis, Jitter (Rj, Pj, ISI, DCD), SSC, and wander elements.
With sample rates from 6 Gsample/sec to 24 Gsample/sec (with up to 10 bit resolution), together with one or two output channels, the toughest signal generation challenges in the high-speed serial communication and wideband RF applications can easily be solved. The open Windows (Windows XP) based instruments deliver ease of use and allow unparalleled connectivity with peripherals and compatibility with third-party software.
