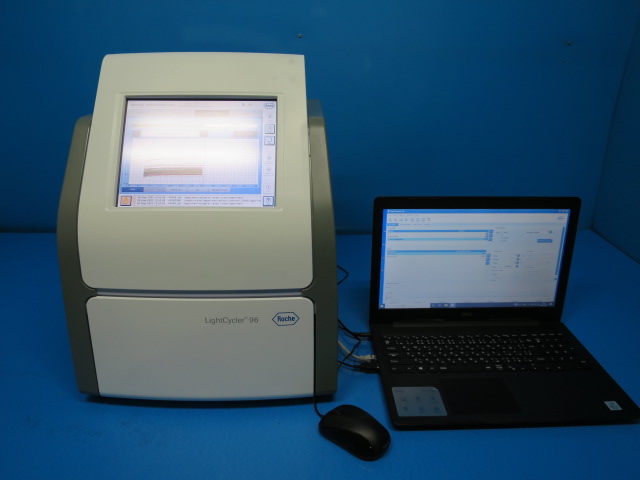

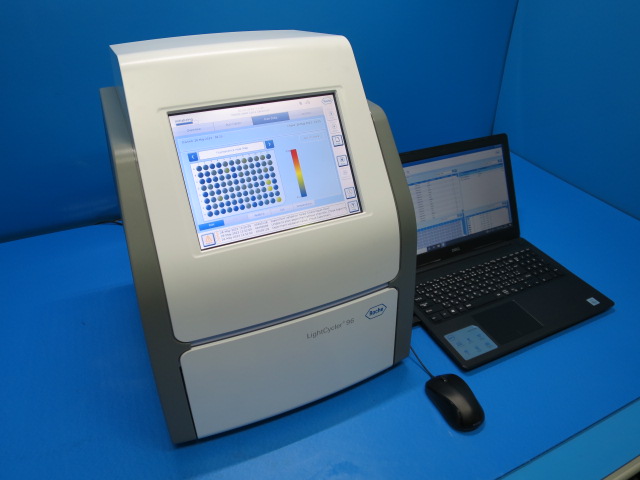

Main body : Light Cycler96
Control method of temparature：peltier element
Maximum speed of thermal cooling : 4.4℃/sec to heat, 2.2℃/sec to cool
Temperature range : 37～98℃
Gradient control range : 37～98℃
Gradient setting range : MAX. 20℃
Light source of fluorescence excitation : LED
Wavelength of fluorescence excitation : 4 wavelength（470、533、577、645nm）
Detected wavelength for fluoresence : 4 wavelength（514、572、620、697nm）
Fluoresence detector : 96ｘ2 for eccitation and detection, CCD camera detecton
Number of samples per a run : 96

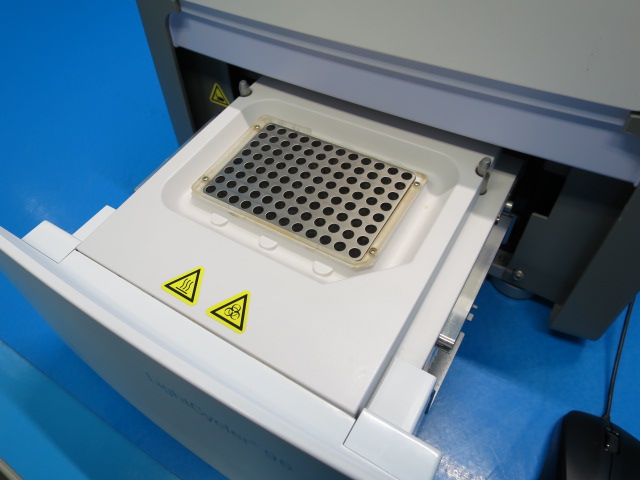

Reacted vessel : 0.1mL per a block, serial 8 tubes, 96 well plates
Reacted capacity : 10～50 μL/well plate
Reacted time : shoter than 40 minutes （40cycles by 3 steps）
Data analysis : absolute quantity, relative quantity, Tm calling, end point genotyping, HRM, qualitatively detecting
External dimenion : W400xD400xH530mm
Weight : approx. 27kg
Power supply : AC100～125V±10%、50/60Hz、600W
