Keysight Technologies (Agilent HP) keysight 81608A

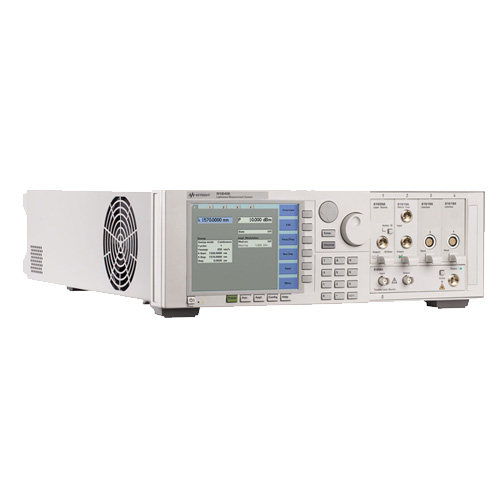

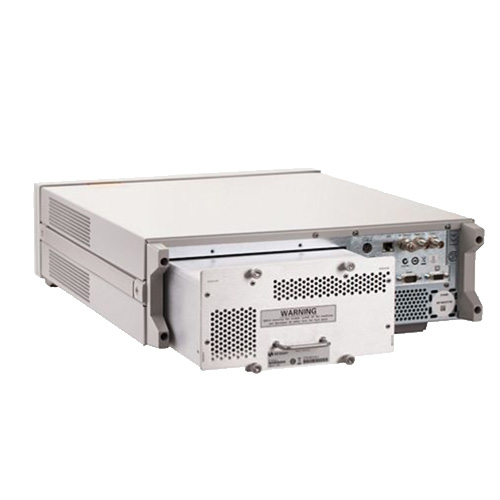

The 81608A tunable laser source, a new module for the 8164B lightwave measurement system.

• Wavelength: 1240‑1380 nm or 1340–1495 nm or 1450‑1650 nm or 1490‑1640 nm
• Sweep speeds: up to 200 nm/s, bidirectional
• Max. power: > +12 dBm peak typ. (Options 114, 116, 216) or > +13 dBm peak typ. (Option 113)
• Signal to SSE ratio: ≥ 75 dB/nm typical
• Absolute wavelength accuracy: ±5 pm static, ±10 pm sweeping typical

The Keysight 8160xA tunable laser sources are based on a common cavity and laser module design. They share a narrow line width and a low spontaneous emission level that, in combination with the Keysight N774xA multiport power meters, or the Keysight 816xxx power meter modules, enables excellent spectral loss measurement ranges in both stop band and pass band. A built-in gas cell and self-adjustment capabilities ensure excellent long-term stability to minimize cost of ownership. Within the 8160xA family, the value and basic line models offer additional price-performance options based on output power, tuning modes and speed, wavelength accuracy and repeatability.
