Midwest Microwave 290-04

529 Visitors viewed Western Test Systems ads in the last 30 Days

The Midwest Microwave subminiature series of fixed coaxial attenuators (MINIPAD ®) provide temperature stable, ruggedly built, precision performance in a compact light weight package size.

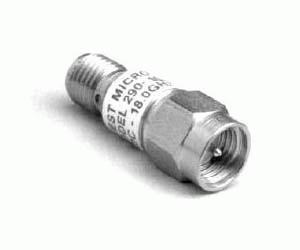

The ATT-0290 is a subminiature DC to 18 GHz, 2 watt, 50 ohm, stainless steel MINIPAD passivated, SMA, male/female fixed attenuator. It is available in a variety of models, 125 in total, which vary according to the attenuation (in dB) and type of body. The following is a partial list:

• ATT-0290-00-HEX-02: 0 dB, hex body
• ATT-0290-03-HEX-02: 3 dB, hex body
• ATT-0290-21-HEX-02: 21 dB, hex body
• ATT-0290-26-SMA-02: 26 dB, straight body
• ATT-0290-29-SMA-02: 29 dB, straight body
• ATT-0290-50-SMA-02: 50 dB, straight body
• ATT-0290-70-HEX-02: 0.5 dB, hex body
• ATT-0290-72-HEX-02: 2.5 dB, hex body
• ATT-0290-86-HEX-02: 16.5 dB, hex body
• ATT-0290-87-HEX-02: 17.5 dB, hex body
• ATT-0290-98-HEX-02: 28.5 dB, hex body
