Fluke 435

140 Visitors viewed Liberty Test Equipment, Inc. ads in the last 30 Days

Send Request
Fluke 435

 Add to request cart
Send to a Friend
Flag of USAEquipment Location: USA
View Description>
Hide Description

Description of Fluke 435

Categories: Analyzers, Power Analyzers

Manufacturer: Fluke

Model: 435

Condition: Used

Seller: Liberty Test Equipment, Inc.

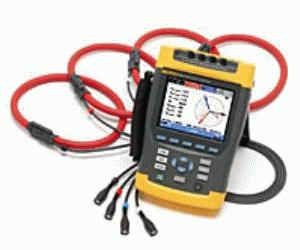

Fluke 435 Three-Phase Power Quality Analyzer

Product specifications of Fluke 435 (From Used-Line T&M Specifications)

  • Launch Date Apr-2006
  • Alternative Fluke 435 Series II Power Quality and Energy Analyzer
  • Input Channels 4 voltage and current (3 phases + neutral)
  • Instrument Type Handheld
  • Interfaces RS-232,Screen,Printer
  • Operation Modes Recorder, logger, monitor
  • Measurements Voltage, current, frequency, dips and swells, harmonics, flicker, unbalance, inrush, transients, energy, interharmonics
  • See also 434
  • Status Discontinued by Manufacturer

These three-phase power quality meters help you locate, predict, prevent and troubleshoot problems in power distribution systems. These easy-to-use power quality tools are a must have for any person who maintains or troubleshoots three phase power. The new IEC Class A standards for flicker and power quality are built right in to take the guess work out of power monitoring.

  • Troubleshoot real-time: Analyze the trends using the cursors and zoom tools—even while background recording continues
  • Highest safety rating in the industry: 600 V Cat IV/1000 V CAT III rated for use at the service entrance
  • Automatic transient mode: Captures 200 kHz waveform data on all phases simultaneously: Up to 6 kV
  • Fully Class A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class A standard
  • Measure all three phases and neutral: With included four current probes
  • AutoTrend: Every measurement you see is always automatically recorded, without any setup
  • The advanced functions Interharmonics, Energy, Transients and Inrush are optional for the Fluke 434 and standard available on the Fluke 435
  • System-monitor: Up to seven power quality parameters on one screen according to EN50160 power quality standard
  • Inrush mode: For troubleshooting nuisance circuit breaker tripping
  • View graphs and generate reports: With included analysis software
  • Logger function: Configure for any test condition with memory for over 400 parameters at user defined intervals
  • Mains signaling: Measure interference from ripple control signals at specific frequencies
  • Includes optical USB cable
  • Battery Life: Seven hours operating time per charge on NiMH battery pack
  • Warranty: Rugged, handheld troubleshooter with Fluke three-year warranty
