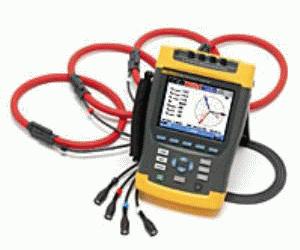

Showing Results for Fluke 435

These three-phase power quality meters help you locate, predict, prevent and troubleshoot problems in power distribution systems. These easy-to-use power quality tools are a must have for any person who maintains or troubleshoots three phase power. The new IEC Class A standards for flicker and power quality are built right in to take the guess work out of power monitoring.

• Troubleshoot real-time: Analyze the trends using the cursors and zoom tools—even while background recording continues
• Highest safety rating in the industry: 600 V Cat IV/1000 V CAT III rated for use at the service entrance
• Automatic transient mode: Captures 200 kHz waveform data on all phases simultaneously: Up to 6 kV
• Fully Class A compliant: Conduct tests according to the stringent international IEC 61000-4-30 Class A standard
• Measure all three phases and neutral: With included four current probes
• AutoTrend: Every measurement you see is always automatically recorded, without any setup
• The advanced functions Interharmonics, Energy, Transients and Inrush are optional for the Fluke 434 and standard available on the Fluke 435
• System-monitor: Up to seven power quality parameters on one screen according to EN50160 power quality standard
• Inrush mode: For troubleshooting nuisance circuit breaker tripping
• View graphs and generate reports: With included analysis software
• Logger function: Configure for any test condition with memory for over 400 parameters at user defined intervals
• Mains signaling: Measure interference from ripple control signals at specific frequencies
• Includes optical USB cable
• Battery Life: Seven hours operating time per charge on NiMH battery pack
• Warranty: Rugged, handheld troubleshooter with Fluke three-year warranty
